How To Test A PTO Switch Using A Multimeter For Lawn Mowers And Tractors

Testing a Power Take-Off (PTO) switch requires a digital multimeter set to continuity mode or resistance (Ohms) to verify internal circuit closure across specific terminals when pulled and pushed. A healthy switch should register near-zero resistance or an audible beep in the active position and an open circuit (OL) in the off position.

Essential Diagnostic Preparation and Safety Protocols

Diagnosing a faulty Power Take-Off switch on a riding lawn mower, zero-turn, or garden tractor requires careful adherence to electrical safety to protect both the operator and the sensitive onboard safety interlock modules. A failing PTO switch can prevent the mower deck blades from engaging, cause intermittent blade spinning, or blow the main system fuse whenever the switch is activated.

Before diving into electrical diagnostics, gather the correct instrumentation and observe mandatory safety precautions to ensure accurate results.

• Essential Tools & Materials: Digital multimeter (DMM) with continuity and Ohms settings, small flathead screwdriver or pick set for wire harness release tabs, safety glasses, and the specific wiring schematic for your equipment model (such as John Deere, Cub Cadet, Husqvarna, or Toro).
• Prerequisite Knowledge & Standards: Familiarity with 12-volt DC automotive electrical systems, basic meter operation, and relay-actuated safety loops (seat switches, parking brake switches, and operator presence controls).
• Estimated Budget & Duration: $0 if you already own a multimeter; 30 to 45 minutes of labor from initial panel access to final reconnection.

Step-by-Step Diagnostic and Testing Workflow

Step 1: Disconnect the Battery and Access the Dashboard Console

Ensure the ignition key is in the off position and the parking brake is engaged to prevent accidental movement. Open the hood or access panel beneath the steering column to locate the backside of the PTO switch mounted in the dash panel. Depress the locking tabs on the wiring harness connector and gently pull straight back to separate the multi-pin plug from the rear of the PTO switch. Inspect the plastic housing and metal spade terminals for signs of thermal damage, melting, corrosion, or moisture intrusion.

Warning: Never pierce wires with sharp test probes while the harness is connected to a live system, as this compromises the insulation and invites water corrosion into the harness loom.

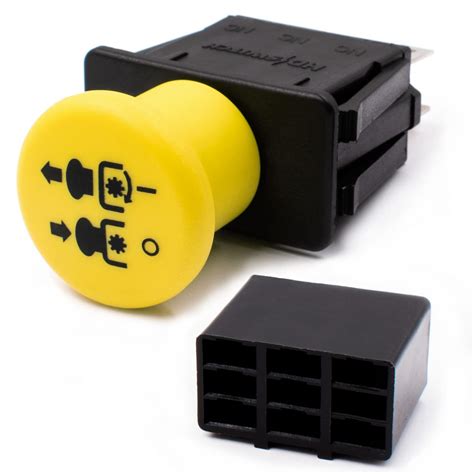

Step 2: Remove and Inspect the Physical PTO Switch Body

With the wiring harness detached, release the mechanical retaining clips holding the PTO switch body inside the dashboard cutout and push the switch out through the front of the console. Examine the pull knob mechanism for mechanical binding, spring return failure, or internal debris. A switch that feels mushy, fails to snap firmly between positions, or shows external cracking must be replaced regardless of its electrical continuity test results.

Pro-Tip: Take a high-resolution photograph of the switch terminal layout and wire colors before removing it, ensuring you reference the exact pin assignments during reinstallation.

Step 3: Configure Your Multimeter for Continuity Testing

Turn your digital multimeter dial to the continuity setting, designated by the diode symbol and a sound wave icon that emits an audible beep when the two test leads are touched together. If your meter does not feature a dedicated continuity mode, select the lowest resistance range, typically measured in Ohms (200 Ohm scale). Verify the meter battery is fully charged so that high internal resistance does not create false positive continuity readings.

Step 4: Map and Test the Switch Terminal Pairs

Consult your equipment's service manual to identify which terminal pairs connect when the switch knob is pushed down (OFF) versus pulled up (ON). Place one multimeter probe on the terminal designated for power input and the second probe on the corresponding output terminal leading to the electric clutch. Test all terminal combinations in both the disengaged and engaged positions, recording whether the meter displays continuity (beeping or zero Ohms) or an open circuit (OL - Over Limit).

Step 5: Evaluate Results Against Standard Operational Logic

A standard PTO switch utilizes multiple independent circuits: one circuit supplies power to the electric blade clutch, while a secondary circuit interfaces with the safety interlock module to allow engine cranking or reverse mow operations. If any required circuit fails to close when the switch is pulled, or fails to open completely when pushed down, the internal copper contacts have pitted, burned, or fused together, necessitating complete switch replacement.

PTO Switch Terminal Designations and Expected Continuity States

Common Electrical Failures and Field Remedies

• Blown Fuses Upon Engagement:


  • Root Cause: Internal short circuit inside the PTO switch contacts or a direct short to ground within the electric clutch winding wire harness.
  • Actionable Fix: Test the PTO switch terminals for resistance to ground. If the switch shows continuity to ground while in the off position, replace the switch. If the switch tests good, inspect the clutch coil wire for chafing against the frame.
• Intermittent Blade Engagement:


  • Root Cause: Pitted, carbon-fouled internal contacts inside the switch causing high electrical resistance under heavy load.
  • Actionable Fix: Although contact cleaner can provide temporary relief, high amp draw across a degraded switch requires full replacement to prevent permanent damage to the machine's wiring harness plug.
• Engine Dies When PTO is Pulled:


  • Root Cause: A faulty safety interlock circuit inside the switch failing to disengage the reverse-mow or seat safety bypass loop correctly.
  • Actionable Fix: Verify continuity across the safety terminals of the switch. Replace the switch if the internal mechanical switching bridge fails to transition states cleanly.

Frequently Asked Questions

Can I test a PTO switch while it is still plugged into the wiring harness?

While back-probing connector pins with a multimeter is possible, it is not recommended for definitive diagnostics because battery voltage interference and complex safety modules can produce misleading readings. Disconnecting the wiring harness entirely allows you to isolate the switch itself and perform accurate continuity bench testing across the raw terminals.

What causes a PTO switch to burn out prematurely?

A PTO switch typically fails due to excessive electrical load, high operating temperatures near the engine dash, or a failing electric clutch coil that draws more amperage than the switch contacts are rated to handle. If you replace a burnt PTO switch, always check the electric clutch resistance value, as a shorted coil will immediately destroy the replacement switch.

How many terminals does a standard lawn tractor PTO switch have?

Most standard lawn tractor and zero-turn PTO switches feature either six or eight blade-style terminals arranged in specific configurations to manage both the high-amp clutch circuit and the low-amp safety interlock circuits simultaneously. Always verify your specific machine's wiring diagram, as terminal counts vary between electric PTO manufacturers like Warner, Delta, and Indak.

Is it safe to bridge a faulty PTO switch with a jumper wire to test the clutch?

Jumping power directly to the electric clutch should only be done for a brief moment to verify that the clutch winding itself engages, and it must never be done while sitting on the machine with the blades unobstructed. Bypassing the switch removes crucial safety interlocks and can cause sudden, dangerous blade rotation or severe damage to your tractor's electrical charging system.

Restore reliable blade operation by testing your electrical components accurately and replacing faulty switches promptly with exact OEM or high-grade aftermarket equivalents.
