Master Guide: How To Thread A Buckle Strap For Any Hardware Type

To thread a buckle strap correctly, feed the working end of the webbing up through the underside of the retention slot, wrap it over the central friction bar, and direct it down through the secondary exit slot. This routing creates a self-locking friction mechanism where applied load pinches the webbing against the buckle frame to prevent slippage. Ensuring the textured or finished side of the webbing faces outward maintains optimal mechanical bite across side-release, ladder lock, and cam buckle assemblies.

Pre-Threading Equipment Checklist and Hardware Identification

Threading a buckle strap efficiently requires matching the webbing material gauge to the exact interior clearance of the buckle slot. Standard commercial buckles rely on precise surface friction and mechanical leverage to hold tension; using undersized webbing causes slippage, while oversized webbing jams the mechanism. Before starting, inspect your hardware and strap materials to confirm structural compatibility.

Technical Pre-Operation Requirements

• Essential Hardware & Tools:


  • Compatible webbing strap (Heavy-duty Nylon, Polypropylene, or Polyester; typical widths: 0.75", 1", 1.5", or 2").
  • Buckle assembly (Dual-adjust side release, ladder lock, cam buckle, tri-glide slide, or double D-ring).
  • Cutting and sealing tool (Hot knife or standard shears with a flame source to melt nylon edges).
  • Needle-nose pliers (Optional, for tight clearance retrofits).
• Mandatory Technical Standards:


  • Webbing Thickness Match: Ensure strap thickness (standard is 1.2mm to 2.2mm) matches the buckle slot clearance (typically 2.5mm to 3.5mm).
  • Directional Load Path: Determine the tension side (standing end) versus the free tail (working end) before routing.
  • Thermal Edge Sealing: Raw webbing ends must be heat-sealed to form a solid, flat bead that prevents fraying and structural pulling through the friction bar.
• Operational Benchmarks:


  • Estimated Duration: 1–3 minutes per buckle installation.
  • Tool Cost Range: $0–$15 (using basic household tools or heat sources).

Standardized Step-by-Step Buckle Threading Workflows

Select the specific workflow below based on your buckle style. Each procedure details the mandatory entry vector, internal tension path, and lock-off step necessary to achieve maximum rated holding power.

Step 1: Threading a Dual-Adjustable Side-Release Buckle

Side-release buckles feature a male prong component and a female housing. Dual-adjustable variants allow tension adjustment at both ends without sewing.

1. Identify the Entry Vector: Hold the male or female buckle piece with the front-facing contoured side pointing upward. The side with the visible center friction bar is your routing zone.
2. Insert from the Underside: Take the working end (free tail) of the webbing and push it up from underneath the buckle through the inner slot closest to the middle of the buckle frame.
3. Pass Over the Center Friction Bar: Pull roughly 3 to 4 inches of webbing through. Loop the working end over the elevated central friction bar.
4. Route Down Through the Outer Slot: Push the working end downward through the outer slot (the slot furthest from the locking prongs/housing mouth).
5. Adjust and Lock: Pull the working end until the strap rests flat against the center bar. Test the tension by pulling on the standing end (the main strap attached to your load). The buckle's internal crossbar ridges will bite into the webbing to prevent slip.

Pro-Tip: Always maintain parallel alignment while threading. If the strap twists inside the inner slot, friction decreases by over 40%, leading to gradual webbing creep under moderate vibration.

Step 2: Threading a Ladder Lock (Ladderloc) and Tri-Glide Slide

Ladder lock buckles are single-piece tensioners commonly found on backpack shoulder straps, allowing easy one-handed tightening and loosening.

1. Mount the Tri-Glide Slide (Strap Keeper): Slide a plastic or metal tri-glide slide onto the webbing first. Thread the webbing up through the rear slot of the tri-glide, across its center bar, and down through the front slot.
2. Orient the Ladder Lock: Position the ladder lock so its raised thumb-lift tab faces upward and away from the load.
3. Feed Bottom-Up Through the Lower Slot: Pass the working end of the webbing from the backside of the buckle upward through the bottom entry slot (the slot closest to the sewn attachment loop).
4. Wrap Around the Retaining Bar: Carry the working end over the central crossbar (ladder rung).
5. Push Down Through the Upper Slot: Direct the working end downward through the top slot adjacent to the thumb tab.
6. Anchor via the Tri-Glide: Loop the remaining tail back through the tri-glide slide behind the buckle. This secondary wrap locks the adjustment tail permanently and prevents flapping.

Warning: Threading the webbing from the top down instead of the bottom up bypasses the ladder lock's mechanical leverage. The strap will feel secure under manual pressure but will instantly slip when subjected to dynamic weight.

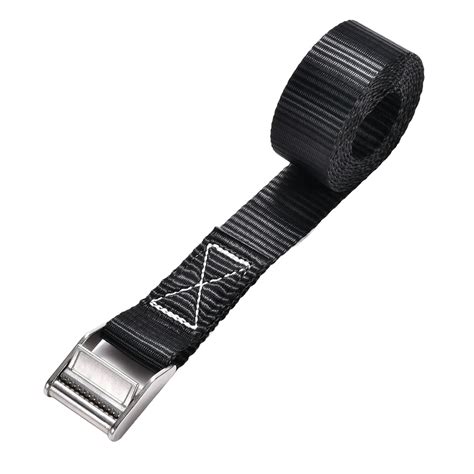

Step 3: Threading a High-Tension Cam Buckle

Cam buckles use a spring-loaded, serrated lever arm to hold heavy loads, such as cargo tie-downs or utility straps.

1. Depress the Spring-Loaded Cam Lever: Press down firmly on the textured thumb pad of the cam lever to tilt the internal serrated teeth away from the bottom frame wall.
2. Determine the Friction Entry Point: Look at the bottom face of the buckle. The webbing must enter from the back/underside of the mechanism so the teeth angle away from the entry point.
3. Feed Webbing Past the Serrated Teeth: Insert the heat-sealed working end through the rear slot, pushing it between the open serrated cam jaw and the flat base plate.
4. Pull to Required Tension: Maintain thumb pressure on the lever while pulling the webbing tail through until all excess slack is removed from the load.
5. Engage the Lock: Release the cam lever. The internal spring drives the hardened teeth directly into the weave of the webbing, securing it instantaneously.

Pro-Tip: Never pull the free tail of a cam buckle while the lever is fully closed. Pulling webbing across closed, spring-loaded steel teeth tears the outer warp yarns of the fabric, permanently degrading strap tensile strength.

Step 4: Threading Double D-Ring and Slide-Bar Frame Buckles

Double D-ring fasteners are lightweight, mechanical cinch locks standard on motorcycle helmets, belts, and marine tie-downs.

1. Align the Rings: Lay the two D-rings flat on top of one another so their curved outer edges point in the same direction.
2. Pass Through Both Rings: Take the working end of the strap and pass it upward through the center of both D-rings from underneath.
3. Separate and Loop Over: Pull through roughly 4 inches of webbing. Separate the top D-ring from the bottom D-ring, folding the working end back over the top ring.
4. Thread Down Through the Bottom Ring: Push the working end downward through the center of the bottom D-ring only.
5. Cinch Flush: Pull the working end away from the load. The top ring presses directly onto the bottom ring, pinching the sandwiched webbing tight.

Buckle Type Specifications & Friction Performance Matrix

Selecting the right hardware and threading strategy depends on load limits, environment, and material compatibility. The following matrix details engineering thresholds for standard buckle assemblies:

Common Threading Failures & Field Remedies

System failure in buckle assemblies rarely stems from material collapse; it almost always results from subtle threading errors or friction mismatches. Use these field diagnostics to troubleshoot common issues:

• Scenario 1: Webbing Continuously Slips Under Light Tension


  • Root Cause: Reverse threading. The working end was routed top-down through a friction-based buckle (such as a ladder lock or tri-glide), eliminating the mechanical leverage required to pinch the strap.
  • Actionable Fix: Fully unthread the strap. Re-enter the primary slot strictly from the underside (load-facing side), wrap over the upper crossbar, and exit out the lower slot. Test by applying a quick tug to the standing end.
• Scenario 2: Strap Bunches Up, Jamming Inside the Buckle


  • Root Cause: Slot-to-webbing dimensional mismatch or an unsealed, frayed end flared wider than the buckle clearance.
  • Actionable Fix: Measure the internal width of the buckle slot with a caliper or ruler. If using 1-inch webbing, verify the buckle clearance is exactly 1.0 inches (25.4mm). If edges are frayed, trim the end clean with shears and lightly burn the edge with a lighter, flattening the molten bead with pliers before re-threading.
• Scenario 3: Smooth Webbing Creeps During Long-Distance Transit


  • Root Cause: Low friction coefficient (e.g., polished polyester or ultra-high-molecular-weight polyethylene webbing) bypassing smooth plastic friction bars.
  • Actionable Fix: Implement a "friction lock-off" loop. After threading through the main buckle, feed the working end through an auxiliary Tri-Glide slide placed directly behind the buckle base plate. Fold the tail back through the tri-glide a second time to create a double-wrap anchor.
• Scenario 4: Cam Buckle Hard-Jams and Will Not Release Webbing


  • Root Cause: Debris (sand, mud, or ice) trapped within the internal spring assembly or using webbing that exceeds maximum thickness specs (e.g., >2.5mm heavy harness webbing).
  • Actionable Fix: Fully depress the cam lever while spraying compressed air or clean water into the hinge cavity to clear debris. If stuck due to webbing thickness, use pliers to pull the tail backward slightly while holding the lever open to release tooth compression.

Frequently Asked Questions

Which direction should a strap enter a ladder lock buckle?

A strap must enter a ladder lock buckle from the underside (the back side touching your gear or body). Threading from the bottom up allows the webbing to loop over the center bar so tension locks the strap against the lower frame wall.

How do I prevent the free end of a threaded buckle strap from flapping?

Install a tri-glide slide or a elastic strap keeper onto the standing web behind the buckle. Pass the free working tail through the slide or elastic sleeve after completing the primary buckle weave to lock the excess material flat.

Why does my side-release buckle slip even when threaded correctly?

Slippage in side-release buckles typically occurs when using thin, slick webbing (under 1.0mm thickness) in a buckle designed for standard 1.5mm to 2.0mm webbing. Upgrading to textured nylon webbing or adding a secondary tri-glide lock-off slide solves the issue.

Can I thread a single strap through two different buckle types?

Yes, combining hardware is standard practice. A typical setup routes the strap through a tri-glide slide first for permanent tail management, then through a ladder lock or side-release buckle for quick adjustments.

What is the difference between single-adjust and dual-adjust buckles?

Single-adjust buckles have one fixed end requiring a sewn webbing loop, with adjustment capability on only one side. Dual-adjust buckles feature friction bars on both male and female components, allowing tension adjustment from either side without any sewing.
