How To Tie Picture Frame Wire: Professional Techniques For Secure Hanging
Mastering the art of tying picture frame wire requires selecting the correct gauge of braided steel and executing a self-locking knot that maintains tension without slipping under load. By using the traditional wrapped-wire technique, you create a load-bearing connection that exceeds the weight capacity of standard sawtooth hangers and prevents the frame from shifting or falling over time.
Essential Preparation and Structural Requirements
Achieving a professional-grade mount relies on selecting the correct hardware components based on the weight, dimensions, and frame material of the artwork. Before beginning, ensure the frame’s internal structure is robust enough to support the intended hanging hardware.
Essential Materials:
- Plastic-coated, multi-strand galvanized steel picture wire (rated for the specific weight of the frame).
- Heavy-duty D-rings or strap hangers (rated for the frame's weight).
- Needle-nose pliers for gripping and twisting.
- Wire cutters or heavy-duty snips capable of shearing braided steel.
- Protective wall bumpers (felt or cork) to prevent drywall damage.
Industry Standards:
- Positioning: Install D-rings approximately one-third of the way down from the top of the frame. Placing them too high causes the frame to lean forward, while placing them too low puts unnecessary stress on the top corners of the frame.
- Wire Length: Calculate the required wire length by adding the horizontal distance between the two D-rings to an additional 12–15 inches to allow for the wrapping process.
- Safety Factor: Always choose wire rated for at least twice the actual weight of the framed piece to account for potential shock loading or wall-mounting adjustments.
Procedural Workflow for Tying Frame Wire
The industry-standard method for securing wire is the "twist-and-lock" technique. This approach uses the physical friction of the steel strands against themselves to create a bond that tightens as weight is applied.

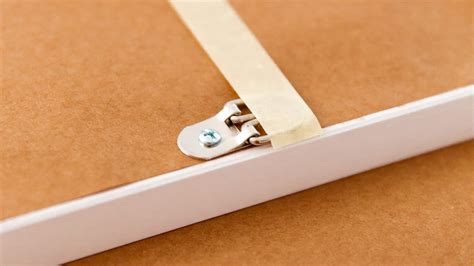

Step 1: Installing the Hardware
Position your D-rings on the rear stiles (vertical sides) of the frame. Ensure the rings are equidistant from the top edge. Use pre-drilled pilot holes to avoid splitting the wood grain, especially when working with hardwood frames. Use screws provided by the manufacturer that are long enough to grip the wood but short enough to avoid protruding through the front of the molding. Tighten the screws until the D-rings are firm, but do not overtighten, as this can strip the wood fibers and weaken the anchor point.
Step 2: Threading the Wire
Insert one end of the picture wire through the eye of the D-ring. Pull approximately 4 to 6 inches of excess wire through the eye. Holding the short end against the long standing part of the wire, begin the wrap. Use your needle-nose pliers to grip the tip of the short end, wrapping it tightly around the standing wire. Make at least five to six clean, tight turns.
Pro-Tip: Ensure the wraps are perpendicular to the standing wire. Avoid overlapping the wraps over one another, as this creates a bulky knot that is prone to unraveling under vibration or temperature changes.
Step 3: Managing Tension and Slack
Repeat the process on the second D-ring, but do not pull the wire completely taut across the back of the frame. Leave enough slack so that when you pull the center of the wire upward toward the top of the frame, it reaches roughly 2 inches below the top edge of the molding. If the wire is too tight, it will be difficult to hang on the wall hook; if it is too loose, the frame will tilt forward excessively.
Step 4: Finishing the Knot
Once the desired slack is achieved, perform the same 5-to-6-turn wrap on the second D-ring. Use your wire cutters to trim any excess wire, but ensure the cut end is tucked neatly against the standing part of the wire.
Warning: Never leave the sharp, cut ends of the steel wire exposed. If they are poking outward, they will scratch the wall and potentially injure your fingers. Use your pliers to press the cut tip flush against the wrap so it remains smooth to the touch.
How To Install Picture Hanging Wire at Chad Taylor blog
Material Selection and Load Capacities
Choosing the correct wire diameter is critical for the longevity of the installation. The table below outlines the relationship between wire gauge and standard performance metrics.
| Wire Diameter (Gauge) | Weight Capacity (Lbs) | Application |
|---|---|---|
| #1 (Thin) | Up to 10 lbs | Small prints, lightweight frames |
| #3 (Medium) | Up to 25 lbs | Standard canvases, medium wood frames |
| #5 (Heavy) | Up to 40 lbs | Large wood frames, gallery displays |
| #8 (Extra Heavy) | 60+ lbs | Ornate, heavy, glass-fronted frames |
Common Failure Scenarios and Technical Remedies
Even with proper installation, environmental factors or material fatigue can compromise the hanging system.
Failure Scenario: Wire Slipping Under Load
- Root Cause: The number of wraps was insufficient, or the wire was not tightened using pliers, leaving too much space between the coils.
- Actionable Fix: Cut the wire, install a fresh length, and ensure you are wrapping the wire back over itself at least six times. Use needle-nose pliers to pull each wrap tight before starting the next.
Failure Scenario: Frame Leaning Too Far Forward
- Root Cause: The D-rings were installed too low on the frame, or the wire span was left with too much slack during the initial tying process.
- Actionable Fix: Relocate the D-rings higher up the frame or shorten the wire span by re-tying the knots to reduce the total amount of slack.
Failure Scenario: Wire Snapping or Fraying
- Root Cause: Using a wire gauge that is underrated for the weight of the frame, or using non-coated wire that interacts poorly with metal D-rings.
- Actionable Fix: Upgrade to a higher-gauge, plastic-coated braided wire. The coating prevents the metal strands from rubbing directly against the D-ring, significantly reducing metal fatigue and fraying.
Frequently Asked Questions
Why must I use coated wire instead of raw steel wire?
Coated wire protects the steel strands from oxidation and prevents the individual metal filaments from fraying when they contact the D-rings. Additionally, the coating provides a smoother surface that makes the manual twisting process easier on your hands and creates a more secure, slip-resistant knot.
How much slack should be in the wire?
The standard rule of thumb is to allow the wire to reach about 2 inches below the top of the frame when pulled upward. This ensures the frame sits flush against the wall while providing enough movement to easily engage the hanging hook.
Can I use a knot instead of wrapping the wire?
No. Standard knots like an overhand or square knot will slip under the tension of a heavy frame, leading to an eventual drop. The professional wrapping method creates friction-based security that is chemically and physically superior for load-bearing applications.
Do I need to use wall bumpers?
Yes. Installing self-adhesive felt or cork bumpers on the bottom corners of the frame protects your walls from scuff marks and helps keep the frame level by adding a small amount of friction against the wall surface.
Enhance your gallery-quality installation by selecting the correct hardware for your specific frame weight and ensuring each connection point is tightened to professional standards. Secure your artwork today with the proper materials to ensure your pieces remain perfectly aligned and safely supported for years to come.
