Master The Art Of Kalimba Tuning: A Complete Guide To Pitch Precision And Tine Maintenance

Tuning a kalimba involves adjusting the length of the metal tines relative to the bridge using a specialized tuning hammer to achieve precise Hertz frequencies, typically based on the A440 standard. By physically shortening the tine to raise the pitch (sharpen) or lengthening it to lower the pitch (flatten), you ensure harmonic alignment across the instrument's specific scale, such as the standard 17-key C Major arrangement.

The Kalimba Tuning Toolkit and Pre-Tuning Assessment

Before striking a single tine, you must understand the physical mechanics of the instrument. The kalimba, often called a thumb piano or mbira, relies on the vibrating length of metal tines resting against a wooden bridge and a metal pressure bar. The portion of the tine extending from the bridge toward the player determines the pitch; the longer this section, the lower the frequency of vibration. Achieving professional-grade resonance requires a controlled environment and specific tools to ensure the wood and metal components are not damaged during the process.

Essential Gear and Pre-Procedure Requirements

• Digital Chromatic Tuner: A dedicated hardware tuner or a high-accuracy smartphone application (such as DaTuner or InsTuner) is necessary. Ensure the tuner is set to a 440 Hz reference pitch unless you are specifically aiming for a Baroque or "Healing" (432 Hz) frequency.
• Tuning Hammer: A small, lightweight hammer specifically designed for kalimbas. These usually feature a long handle for leverage and a small head to strike the tines without hitting the neighboring keys.
• Microfiber Cloth: Used to wipe down tines after tuning. Skin oils contain salts and acids that can lead to oxidation and rust on carbon steel or plated tines over time.
• Scale Reference Chart: A layout diagram for your specific model (e.g., 17-key, 21-key, or 10-key). This identifies which note each tine should produce.
• Quiet Environment: Ambient noise interference can confuse digital tuners, especially when dealing with the high-frequency "dead tines" on the edges of the instrument.

Estimated Duration: 15 to 30 minutes for a full 17-key instrument. Cost Benchmark: $0 (if using a free app and the hammer included with the instrument) to $25 for a professional-grade tuning kit.

Calibrating Your Thumb Piano: The Sequential Tuning Process

The goal of tuning is to reach the "0 cents" mark on your chromatic tuner for every note in your scale. Most kalimbas come pre-tuned to C Major, which includes the notes C, D, E, F, G, A, and B. If your instrument is fresh out of the box or has been exposed to humidity changes, it is likely that several tines have drifted flat (lower than they should be) or sharp (higher than they should be).

Step 1: Initial Pitch Evaluation

Place the kalimba on a flat, resonant surface or hold it comfortably in your palms. Start with the longest tine in the center (usually C4). Pluck it firmly with your thumbnail. Observe the tuner:

• If the needle moves to the left or indicates a negative number, the tine is flat.
• If the needle moves to the right or indicates a positive number, the tine is sharp.
• If the tuner displays a different letter entirely, you are more than a semi-tone out of alignment.

Step 2: Adjusting for Flat Notes (Sharpening)

When a note is flat, the vibrating part of the tine is too long. You need to push the tine upward toward the headstock of the kalimba.

1. Hold the tuning hammer by the end of the handle for maximum control.
2. Gently tap the bottom edge (the end you pluck) of the tine, pushing it toward the top of the instrument.
3. Use small, incremental taps. Metal moves more than you might expect under the force of a hammer.
4. Re-check the pitch after every two or three taps.

Pro-Tip: If the tine is significantly flat, check if the pressure bar (the metal rod holding the tines down) is loose. If the bar doesn't provide enough friction, the tine will slip back into a flat position immediately after tuning.

Step 3: Adjusting for Sharp Notes (Flattening)

When a note is sharp, the vibrating part of the tine is too short. You need to lengthen it by pushing it downward.

1. Place the hammer head on the top edge of the tine (the end furthest from you, near the back of the wood).
2. Tap the tine downward toward the bottom of the instrument.
3. Because you are tapping against the tension of the bridge, you may need a slightly firmer strike than you used for sharpening.
4. Ensure you are hitting only the intended tine to avoid knocking neighboring keys out of tune.

Step 4: Resolving High-Frequency "Dead Tines"

The shortest tines on the outer edges of a 17-key kalimba often suffer from a lack of sustain, commonly called "dead tines." These are difficult to tune because their vibrations are so fast that tuners often struggle to register them.

1. If the tuner fails to pick up the note, try plucking the tine while touching the wood of the kalimba to your ear (or a table) to hear the fundamental frequency more clearly.
2. Wiggle the tine slightly from side to side while it is under the pressure bar. This can sometimes "seat" the tine better against the bridge, improving both the pitch clarity and the volume.

Step 5: Final Harmonic Verification

Once every individual tine is tuned to its designated note, play octaves to check for harmonic resonance. For example, pluck the center C4 and the C5 located to its right. If they are both perfectly in tune, they will blend into a single, clean sound. If you hear a "wavering" or "beating" sound, one of the tines is slightly off-pitch relative to the other. Fine-tune until the interval sounds pure.

Warning: Never use a standard carpenter's hammer or heavy metal tools not designed for musical instruments. The excessive force can crack the wooden soundboard (body) or create permanent dents in the metal tines, which will permanently alter the timbre.

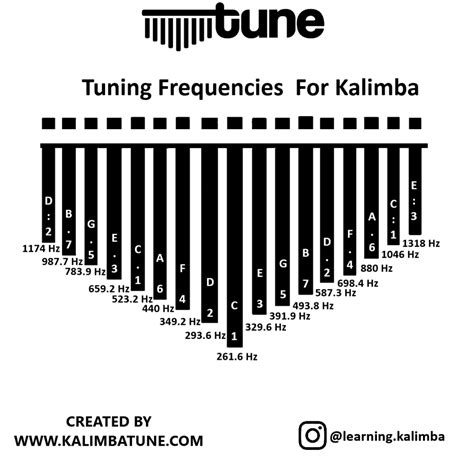

Frequency and Note Specifications for 17-Key Kalimba (C Major)

The following table provides the standard frequencies for a 17-key kalimba in the key of C Major. This is the most common configuration and uses the A440 Hz standard. Tuning to these specific Hertz values will result in the most accurate musical performance.

Resolving Common Tuning Failures and Tine Noise

Even with a perfect hammer technique, mechanical issues within the kalimba can prevent a clean tune. Understanding the root causes of these issues allows for field fixes that go beyond simple pitch adjustment.

• Issue: Persistent Tine Buzzing




  • Root Cause: A tiny gap between the tine and the bridge or the pressure bar, or a microscopic piece of debris (dust/metal shavings) trapped at the contact point.
  • Actionable Fix: First, try "wiggling" the tine side-to-side to clear debris. If the buzz persists, take a small piece of thin paper and slide it between the tine and the bridge. If that stops the buzz, you may need to slightly bend the tine or use a "buzz killer" (a small magnet or a tiny piece of plastic) to dampen the unwanted vibration.

• Issue: The Tine Won't Stay in Tune (Slipping)




  • Root Cause: Low friction at the bridge or a loose pressure bar screw (on models that have them).
  • Actionable Fix: On kalimbas with screws on the pressure bar, tighten them slightly with a screwdriver. For models without screws, you can place a small piece of paper or a thin sliver of wood under the tine at the back rest (not the bridge) to increase the downward tension on the bridge.

• Issue: Dull or "Thuddy" High Notes




  • Root Cause: The tine is too stiff or the wood of the kalimba is not resonant enough at that specific high frequency.
  • Actionable Fix: Try adjusting the position of the tine slightly to the left or right on the bridge. Sometimes moving the tine by just half a millimeter can find a "sweet spot" on the wood that resonates better. Additionally, ensure your fingernail is hitting the tine cleanly; a fleshy thumb strike will deaden high notes instantly.

Frequently Asked Questions

How often should I tune my kalimba?

You should check the tuning of your kalimba once every two weeks or whenever you notice a dissonant sound during play. Because kalimbas are made of wood and metal, they are sensitive to temperature and humidity changes, which cause the materials to expand and contract, shifting the pitch.

Can I tune my kalimba to a different key?

Yes, you can retune a C Major kalimba to other scales like G Major or even minor scales. To change to G Major, you would need to sharpen all the F notes to F# (F-sharp) by tapping them upward. Note that extreme retuning (more than a whole step) can affect the tension and sound quality of the tines.

What is the difference between A440 and A432 tuning?

A440 is the modern international standard for tuning musical instruments. A432 is an alternative frequency often used in meditation and sound therapy, believed by some to be more "natural." While you can tune a kalimba to 432 Hz, it will sound slightly flat when played alongside other standard instruments or backing tracks.

Why do my tines feel harder to move when I'm tuning them?

This usually indicates high tension from the pressure bar, which is actually a sign of a well-constructed instrument. If the tines are too difficult to move with the hammer, do not force them. Instead, use a small piece of wood as a buffer between the hammer and the tine to provide a larger surface area for the strike, preventing the hammer from slipping and scratching the metal.

Professional Kalimba Care and Maintenance

Maintaining a perfectly tuned kalimba is the foundation of becoming a proficient player and ensuring the longevity of your instrument. Regular tuning, combined with keeping the tines clean and dry, will preserve the bright, ethereal tone that makes the kalimba a unique addition to any musical collection.
