How To Use Heat Shrink Tape On Irregular Surfaces For Secure Seals

Applying heat shrink tape to complex contours requires precise tension control, accurate thermal management, and a systematic overlap strategy to prevent edge-lifting and moisture ingress. By balancing polyolefin recovery rates with targeted flame or flameless heat application, technicians can achieve a waterproof, dielectric seal over sharp angles, multi-diameter transitions, and dynamic mechanical joints.

Pre-Operation and Equipment Checklist

Mastering heat shrink tape on uneven geometries demands specialized materials and rigorous preparation. Unlike standard straight-run cable management, irregular surfaces concentrate stress points that can tear thin adhesive backings or cause uneven polymer contraction if thermal distribution is mismanaged.

• Essential Gear and Materials:

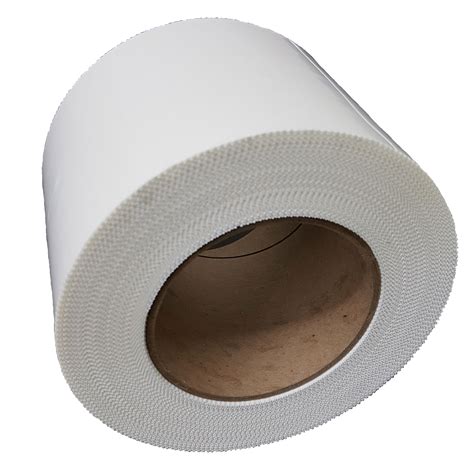

  • Industrial-grade heat shrink tape featuring a cross-linked polyolefin backing and a heat-activated mastic or thermoplastic adhesive inner layer (minimum 3:1 or 4:1 untwisted recovery ratio recommended).
  • Variable-temperature industrial heat gun with wide-slot and reflector nozzles for even thermal diffusion.
  • Propane or butane torch equipped with a spread flame tip (for heavy-duty mastic tapes requiring rapid, high-intensity heat).
  • Isopropyl alcohol (99% concentration) and lint-free industrial wipes for surface decontamination.
  • Abrasive cloth (80 to 120 grit) for scoring non-porous substrates to enhance mechanical keying.
  • High-tension electrician's rubber splicing tape or self-amalgamating tape for pre-contouring massive void spaces.
  • Non-contact infrared thermometer or temperature-indicating crayons to monitor dwell zones.
• Prerequisite Knowledge and Standards:


  • Familiarity with dielectric breakdown ratings, continuous operating temperature ranges (typically -55°C to 110°C), and tensile strength metrics governed by standards such as ASTM D2671 and SAE-AMS-DTL-23053.
  • Understanding of the vector forces exerted by shrinking polymers, which pull inward toward areas of maximum curvature.
• Time and Budget Benchmarks:


  • Average execution time: 15 to 45 minutes per joint, heavily dependent on surface complexity and curing intervals.
  • Estimated material investment: $30 to $120 per application depending on adhesive chemistry, width, and spool length.

Step-by-Step Heat Shrink Tape Application Workflow

Step 1: Substrate Preparation and Void Filling

Thoroughly clean the irregular surface using a 99% isopropyl alcohol wipe to eliminate oils, oxidation layers, and particulate debris. For metallic or rigid plastic surfaces, lightly abrade the contour using 80-to-120-grit cloth to create microscopic anchors for the adhesive layer.

Warning: Never use petroleum-based solvents for final cleaning, as residual films will catastrophically compromise the bond strength of the heat-activated inner mastic.

Inspect the profile for sharp transitions, 90-degree corners, or extreme diameter changes. Because heat shrink tape bridges voids rather than conforming to impossible sub-millimeter crevices by itself, build up deep recesses using non-conductive, self-amalgamating rubber tape first. This creates a smooth, gentle transition ramp that prevents air pockets and local mechanical stress concentration during recovery.

Step 2: Strategic Wrapping and Tension Control

Unroll the heat shrink tape while maintaining a constant, firm manual tension of approximately 10 to 15 pounds of pull force. Begin wrapping at the smallest diameter section of the irregular surface, working your way toward the larger profile to ensure subsequent layers lap shingles-style over preceding ones, preventing moisture tracking.

Overlap each consecutive wrap by 50% to ensure a double-thickness wall across the entire contour. As you navigate irregular angles, do not stretch the tape past its elastic limit on outer radii, as over-stretching causes micro-fissuring in the polyolefin backing and results in poor recovery performance. Keep the tape centered across the profile, ensuring at least one to two inches of continuous contact on straight, uniform substrate on both ends of the irregular zone.

Pro-Tip: Anchor the initial starting tail of the tape with a single tight wrap of non-shrink polyester tape if the starting geometry is too slick to maintain initial friction before the heat cycle begins.

Step 3: Thermal Application and Polymer Recovery

Initialize your heat source, adjusting a variable heat gun to between 120°C and 250°C (or ignite your calibrated propane torch with a spreader tip, maintaining a soft, yellow-blue flame). Maintain a continuous motion, holding the heat source approximately 2 to 4 inches away from the tape surface to prevent scorching or localized polymer degradation.

Begin heating at the center of the irregular wrap or at the lowest point of the contour, working systematically outward toward the terminal ends. This forces trapped air pockets out of the assembly rather than sealing them inside. Watch the tape closely for color change or the glossy transition sheen that indicates the inner thermoplastic adhesive has reached its activation threshold and is flowing into every crevice of the irregular substrate.

Step 4: Post-Application Inspection and Curing

Continue sweeping the heat source over the entire wrapped assembly until the tape has shrunk tightly down to its maximum recovery limit and completely conformed to the irregular geometry. Examine the edges of the tape to verify that a thin, uniform bead of clear or black adhesive has oozed out evenly along the perimeters, confirming a hermetic seal.

Allow the assembly to cool undisturbed to ambient temperature (typically 15 to 30 minutes) before handling, flexing, or subjecting it to mechanical loads or moisture exposure. Do not accelerate cooling with water or compressed air, as rapid thermal shock can crystallize the recovering polyolefin and embrittle the adhesive bond line.

Technical Parameters of Heat Shrink Tape Options

Common Site Failures and Field Fixes

• Root Cause: Edge lifting or peeling on sharp 90-degree corners immediately after cooling.


  • Actionable Fix: The radius was too abrupt for the tape's recovery memory. Strip the failed tape, build up the sharp corner with a generous fillet of self-amalgamating rubber tape to create a smooth slope, and reapply the heat shrink tape with a 66% overlap.
• Root Cause: Trapped air bubbles and moisture blisters forming beneath the tape during the heating cycle.


  • Actionable Fix: Heat was applied from the outside edges inward, sealing the center prematurely. Puncture the blister carefully with a hot needle, reheat the area starting from the base of the contour outward, and apply firm pressure with a gloved thumb or roller to expel the trapped vapor.
• Root Cause: Charring, burning, or thinning of the polyolefin backing.


  • Actionable Fix: The heat source was held too close or kept stationary for too long. Replace the compromised section, increase the distance between the nozzle and the tape, and maintain a continuous sweeping motion with the heat gun or torch.
• Root Cause: Adhesive failing to flow or seal against an oily or contaminated substrate.


  • Actionable Fix: Inadequate solvent degreasing prior to wrapping. Remove the entire tape assembly, clean the metal or plastic contour thoroughly with 99% isopropyl alcohol and a clean abrasive pad, ensure total drying, and execute a fresh wrap.

Frequently Asked Questions

Can I use a standard household hair dryer for heat shrink tape?

No. Standard household hair dryers generally only reach maximum temperatures of 60°C to 80°C, which is insufficient to activate industrial cross-linked polyolefin recovery ratios or melt heavy thermoplastic adhesives. You must use an industrial heat gun or calibrated propane torch capable of delivering at least 120°C to 300°C.

How do I calculate the correct tape width for an irregular joint?

Calculate the maximum circumference of the irregular profile, factor in the required 50% lateral overlap per wrap pass, and select a tape width that covers the longitudinal span plus an additional 2 inches of straight substrate on both ends. Wider tapes provide better structural bridging over voids, while narrower tapes offer superior conformability on tight, complex curves.

Is it possible to apply heat shrink tape underwater or in damp environments?

While specialized mastic-backed tapes are engineered to displace moisture during the heating cycle and form waterproof seals in wet environments, initial application directly underwater is not recommended. Surfaces should be wiped as dry as possible prior to wrapping to ensure the initial adhesive tack and polyolefin grip achieve proper contact.

What causes heat shrink tape to split or crack longitudinally?

Longitudinal splitting typically occurs when the tape is overheated in a single spot, causing the polymer chains to exceed their maximum tensile stress threshold, or when the tape is stretched past its maximum recommended recovery ratio during the wrapping process. Always maintain fluid torch movement and respect the manufacturer's specified recovery limits.

Can heat shrink tape be uninstalled and reused?

No. Heat shrink tape is a single-use, permanent sealing solution. Once the polyolefin backing has thermally recovered and the inner thermoplastic or mastic adhesive has cured and cross-linked, the tape cannot be unpeeled and reapplied without destroying its structural integrity and sealing properties.

Secure Your Complex Joints Today

Achieving a flawless, weatherproof, and mechanically robust seal on challenging geometries requires pairing high-grade polyolefin materials with methodical preparation and precise thermal control. Upgrade your maintenance protocols today by stocking professional-grade adhesive heat shrink tapes designed to outlast the harshest operating environments.
