Master The Espresso Puck Screen: A Step-by-Step Guide To Perfect Extraction Flow

To use a puck screen, prepare and tamp your coffee bed as normal, then place the dry, preheated metal disc flat and centered on top of the tamped coffee grounds before locking the portafilter into the group head. This porous stainless steel barrier evenly disperses pressurized water across the coffee bed to eliminate channeling while physically shielding the shower screen from dirty coffee oils. After extraction, knock the screen out with the spent puck, rinse it immediately under hot water, and dry it thoroughly to maintain thermal consistency.

Pre-Brewing Setup: Choosing and Preparing Your Puck Screen Equipment

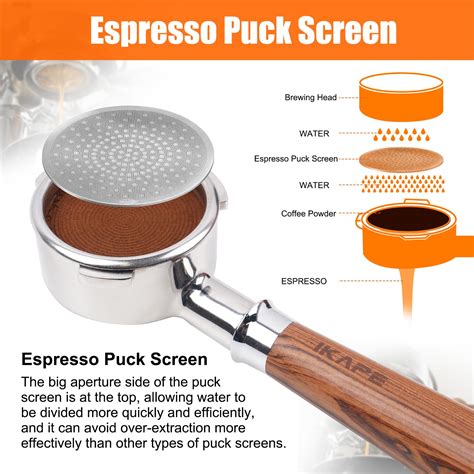

Integrating a puck screen into your espresso workflow requires a baseline understanding of how physical headspace and thermal mass affect your extraction. The puck screen is a thin, circular plate crafted from sintered wire mesh or chemically etched stainless steel. It rests directly on top of the tamped coffee bed, acting as a final distribution barrier between the machine’s group head shower screen and the coffee grounds.

Because a standard sintered puck screen is typically 1.7 millimeters thick, it occupies a specific amount of physical volume inside your filter basket. This reduction in headspace means you must carefully calibrate your dry coffee dose. Attempting to use your standard coffee dose with a puck screen can lead to the screen pressing hard against the group head's dispersion screw, causing immediate channeling, cracked coffee beds, or a completely jammed portafilter.

Essential Equipment and Setup Checklist

To successfully implement a puck screen without compromising your espresso machine's hydraulic mechanics or your extraction quality, gather and verify the following equipment:

• Sintered or Etched Puck Screen: A 150-micron, 316 marine-grade stainless steel screen matching your basket's interior diameter (e.g., 58.5 millimeters for standard commercial baskets, 53.5 millimeters for 54-millimeter Breville baskets, or 51 millimeters for smaller domestic machines).
• Precision Filter Basket: High-extraction baskets (such as IMS, VST, or Pullman) provide the vertical sidewalls necessary for a puck screen to sit perfectly flat.
• Calibrated Tamper: A tamper matching your exact basket size (ideally 58.5 millimeters for a 58-millimeter basket) ensures a flat, level surface for the screen to sit on.
• Weiss Distribution Technique (WDT) Tool: A tool with 0.3-millimeter to 0.4-millimeter needles to homogenize the coffee bed before tamping.
• Acurate Milligram Scale: To adjust and down-dose your coffee by 0.5 grams to 1.0 grams to accommodate the physical thickness of the screen.
• Time and Budget Benchmarks: This process adds approximately 5 to 10 seconds to your preparation routine. High-quality puck screens cost between $10 and $25, making them one of the most cost-effective upgrades in home espresso preparation.

The Precision Workflow: How to Integrate a Puck Screen into Your Espresso Routine

Succeeding with a puck screen requires meticulous execution of your puck preparation. Because the screen sits downstream of your grinding and distribution phases, it cannot fix a poorly prepared or unevenly tamped coffee bed. Follow this precise operational sequence to achieve optimal results.

Step 1: Grind, Distribute, and Tamp Your Coffee Bed

Begin by grinding your fresh espresso beans into your precision portafilter basket. Use your milligram scale to weigh the dose, keeping in mind that you may need to reduce your standard recipe by 0.5 grams to 1.0 grams to compensate for the screen's thickness. Use a WDT tool to break up any clumps, ensuring a uniform density throughout the basket from the bottom to the top. Gently tap the portafilter on your tamping mat to settle the grounds. Use a self-leveling tamper to apply flat, perpendicular pressure to the coffee bed.

Warning: Never use a convex tamper when planning to use a puck screen. Convex tampers leave a slight depression in the center of the bed, which prevents the flat puck screen from seating uniformly, resulting in peripheral bypassing and severe edge channeling.

Step 2: Preheat the Puck Screen

Because stainless steel has a high thermal mass, placing a cold puck screen on top of your warm coffee bed will instantly absorb thermal energy from your brewing water. This localized drop in temperature can lower your extraction temperature by up to 3 degrees Celsius, resulting in sour, underextracted espresso. To prevent this, place your puck screen on top of your empty portafilter while your machine heats up, or submerge the screen in a cup of boiling water from your machine's hot water spout for 15 seconds before drying it with a clean cloth.

Step 3: Insert and Align the Screen

Using your fingers or a magnetic pickup tool, gently place the preheated, dry puck screen directly on top of the tamped coffee bed. Press down lightly with minimal pressure to ensure the screen lies completely flat and parallel to the basket's rim. The screen must not sit at an angle. If one side of the screen is elevated, pressurized water will migrate toward the path of least resistance, causing severe channeling on the shallower side of the coffee bed.

Pro-Tip: Ensure there are no loose coffee grounds resting on top of the screen or along the inner rim of the basket. Loose grounds can migrate up into the group head gasket during lock-in, causing pressure leaks or damaging the soft silicone seal over time.

Step 4: Lock, Pre-Infuse, and Extract

Carefully insert the portafilter into your machine's group head. Ensure you do not feel excessive physical resistance when locking the portafilter handle into place. If the handle is extremely tight or springy, the screen is physically compressing against the shower screen; immediately remove the portafilter and decrease your dry coffee dose. Once locked in, initiate your extraction.

If your machine has a manual pre-infusion phase, program it for 5 to 8 seconds. This allows water to completely saturate the sintered mesh of the puck screen before high pump pressure (typically 9 bar) is applied. The pre-saturated screen acts as a hydraulic damper, turning a high-velocity jet of water into a gentle, uniform rain across the surface of the coffee.

Step 5: Eject and Clean the Screen

Once your shot is complete, remove the portafilter. You will notice that the top of the puck screen remains relatively dry and clean, while the coffee bed beneath it has expanded into the screen. Invert the portafilter over your knock box and tap firmly. The spent coffee puck and the puck screen will release together.

Retrieve the hot screen immediately using a towel or a magnetic tool. Rinse the screen under a high-pressure stream of hot water from your group head or tap to flush out trapped coffee particles before they dry and polymerize. Wipe the screen dry with a clean microfiber cloth, and store it in a dry place.

Puck Screen Material Dynamics and Sizing Specifications

The market offers several varieties of puck screens, each with unique physical characteristics that affect thermal retention, flow resistance, and headspace requirements. Sintered mesh screens excel at water distribution and group head cleanliness but require diligent cleaning. Chemically etched plates offer minimal thermal impact and easy cleaning but provide less flow diffusion.

Troubleshooting Extraction Anomalies and Maintenance Failures

Using a puck screen introduces a new physical variable to your brewing system. When extraction issues arise, they can usually be traced back to incorrect sizing, improper cleaning, or thermal management errors.

• Scenario 1: Slower Flow Rate or Sudden Underextraction


  • Root Cause: The multi-layered sintered mesh acts as a flow restrictor. Over time, microscopic coffee fines and insoluble oils become trapped deep inside the inner wire layers, creating high hydraulic resistance and lowering water temperature.
  • Actionable Fix: Perform a deep clean of the screen. Soak it in a solution of hot water and espresso machine detergent (sodium carbonate/percarbonate) for 30 minutes, then rinse it thoroughly. Backflush your machine with the screen resting on an empty basket, or blast it with your steam wand to force trapped particles out of the mesh.
• Scenario 2: The Portafilter Will Not Lock into the Group Head


  • Root Cause: The dry coffee dose is too high for the selected basket size when paired with a 1.7-millimeter puck screen. The screen is physically hitting the group head's shower screen dispersion screw, preventing the portafilter ears from engaging with the group head collar.
  • Actionable Fix: Use a digital scale to reduce your coffee dose by 0.5 grams to 1.0 grams. Alternatively, transition to a deeper filter basket (e.g., upgrading from an 18-gram basket to a 20-gram basket) while keeping your coffee dose at 18 grams to create the necessary headspace.
• Scenario 3: Sour, Luke-Warm Espresso Shots (Thermal Loss)


  • Root Cause: The puck screen was inserted cold. Because stainless steel is highly conductive, a cold screen draws heat away from the incoming brewing water during the crucial early seconds of extraction, dropping the brewing temperature.
  • Actionable Fix: Always preheat the puck screen. Let it sit in your locked portafilter while your machine warms up, or flush 2 ounces of hot water through your loaded portafilter right before brewing to lock in the temperature.
• Scenario 4: Mold, Off-Flavors, and Rancid Coffee Oils


  • Root Cause: Simply rinsing the puck screen under cold water after use leaves organic oils trapped inside the mesh layers. Over days of use, these oils oxidize, rot, and impart bitter, metallic flavors to subsequent extractions.
  • Actionable Fix: Implement a strict daily cleaning protocol. At the end of every brewing session, rinse the screen with boiling water and dry it. Once a week, submerge the screen in an ultrasonic cleaner or boil it in a pot of water mixed with backflush detergent for 10 minutes.

Frequently Asked Questions

Do you tamp with the puck screen on?

No, you must never tamp with the puck screen resting on top of the loose coffee grounds. The screen is designed to sit on top of a pre-compressed, flat coffee bed; tamping with the screen in place will cause uneven density distributions, scratch your basket walls, and warp the screen.

Which side of the puck screen faces up?

For multi-layer sintered mesh screens, both sides are identical, meaning either side can face upward. However, if your screen has an engraved logo, a directional arrow, or a polished smooth side on one face, place the smooth or branded side facing upward toward the shower screen to ensure the smoothest water distribution and easiest cleanup.

Does a puck screen replace paper espresso filters?

Puck screens and paper filters serve different primary functions. While a paper filter is typically placed at the bottom of the basket to trap oils and fines to increase clarity, a puck screen is placed on top of the coffee bed to distribute water and keep the group head clean, meaning they can be used simultaneously for different results.

Does a puck screen reduce channeling?

Yes, a clean puck screen significantly reduces channeling by dispersing the high-velocity stream of water exiting the group head into a gentle, even rain across the coffee bed. This prevents the water from digging holes or creating high-flow pathways through weaker areas of your tamped coffee.

Elevate Your Home Barista Extraction Dynamics

Achieving commercial-grade espresso extraction at home requires a dedication to physical consistency and thermal precision. Integrating a high-quality puck screen into your daily puck preparation is one of the easiest ways to stabilize your flow rates and keep your machine operating at peak performance.
