How To Properly Vent A Pellet Stove: Professional Installation And Safety Standards
Proper pellet stove venting requires the use of specialized PL-vent (positive pressure) piping to ensure exhaust gases are safely removed from the living space while maintaining necessary draft dynamics. Following NFPA 211 standards and manufacturer-specific clearance protocols is essential to prevent carbon monoxide accumulation, chimney fires, and structural damage to the home.
Pre-Installation Requirements and Safety Planning
Installing a venting system for a pellet stove is not a project for standard residential HVAC ducting; it requires Underwriters Laboratories (UL) 641 listed venting components. Because pellet stoves use an internal combustion blower to push exhaust out, the system operates under positive pressure, meaning every joint must be sealed with high-temperature silicone to prevent gas leakage. Before beginning, ensure you have a clear plan regarding whether you will utilize a horizontal through-the-wall installation or a vertical through-the-roof configuration.
- Essential Gear and Materials:
- UL 641-listed pellet vent piping (typically 3 or 4-inch diameter).
- High-temperature silicone sealant (rated for 500 degrees Fahrenheit or higher).
- Stainless steel wall thimble and support brackets.

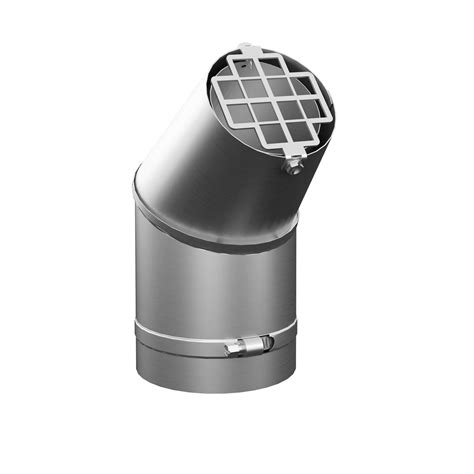

- Exterior termination cap with built-in bird screen.
- Fire-rated sealant or intumescent putty for wall penetrations.
- Power tools including a reciprocating saw, drill, and hole saw matching the vent diameter.
- Essential Standards and Prerequisites:
- Verify local building codes and obtain necessary permits; most jurisdictions require inspection of fireplace or stove installations.
- Ensure a minimum of 18 inches of vertical pipe inside the room before any elbows to establish initial natural draft in case of power failure.
- Budget and Timeframe: Expect to spend between four to eight hours for a standard installation, with material costs varying based on the complexity of the run and the quality of the venting system chosen.
Step-by-Step Installation Workflow for Pellet Stove Venting
Step 1: Identifying the Optimal Exhaust Path
Begin by selecting an exit point that adheres to exterior clearance requirements. The exhaust termination must be at least 36 inches above any forced-air inlet located within 10 feet, and at least 12 inches above grade to prevent blockage by snow or debris. Mark the center point of the hole on the interior wall, ensuring it aligns with the stove’s exhaust collar. Use a level to ensure the pipe run remains straight or maintains a slight upward slope toward the outside to assist with condensate drainage.
Step 2: Cutting the Wall Penetration and Installing the Thimble
Once the center point is confirmed, cut the opening through the wall using a hole saw or reciprocating saw, ensuring the hole is large enough to accommodate the wall thimble. The thimble acts as a heat shield, preventing the high-temperature pipe from coming into contact with combustible building materials like wood studs or drywall. Insert the interior and exterior halves of the thimble, securing them firmly to the structure with screws, and seal the perimeter with fire-rated caulk.
Step 3: Assembling and Sealing the Vent Pipe
Assemble the pipe sections starting from the stove exhaust port, moving outward. Each section of PL-vent is designed with a male and female end; apply a bead of high-temperature silicone around the male end before inserting it into the female end. Secure each joint with at least three evenly spaced sheet metal screws.
Pro-Tip: Do not use standard aluminum foil tape on joints, as it will degrade under high heat; always use high-temp silicone and mechanical fasteners to ensure an airtight seal.
Step 4: Finalizing the Exterior Termination
Install the final section of pipe through the exterior thimble and attach the termination cap. The cap should face downward or include a baffle to prevent rain from entering the system. Ensure the pipe is secured to the exterior wall with a support bracket to prevent wind-induced vibration from loosening the connections.
Warning: Never vent a pellet stove into an existing masonry chimney without a stainless-steel liner. Unlined chimneys have too much volume, which leads to slow exhaust velocity, excessive creosote buildup, and potential back-drafting.
How To Vent A Pellet Stove Through An Existing Chimney | Storables
Technical Specifications and Material Thresholds
Understanding the mechanical demands of the venting system is vital for operational longevity. The following table highlights the critical parameters for choosing and installing your system components correctly.
| Parameter | Specification/Requirement | Purpose |
|---|---|---|
| Vent Material | UL 641 Listed PL-Vent | Ensures pressure-tight containment of exhaust gases. |
| Minimum Vertical Rise | 18 to 36 inches | Establishes draft and provides thermal safety during power loss. |
| Maximum Horizontal Run | 8 to 10 feet | Prevents excessive backpressure on the combustion blower. |
| Joint Sealing | High-Temp RTV Silicone | Maintains airtight integrity under positive pressure. |
| Fastening Frequency | 3 Screws per Joint | Prevents physical separation of pipe segments. |
Common Installation Failures and Field Remedies
Even with careful planning, common issues can arise during the first firing of the unit. Monitoring the stove for these signs will save the appliance from long-term wear and tear.
- Root Cause: Smoke odor inside the home.
- Actionable Fix: Inspect all pipe joints for missed silicone or missing screws. Ensure the wall thimble is properly sealed with fire-rated caulk, as the leak often occurs where the pipe meets the wall.
- Root Cause: Stove shuts down due to airflow errors.
- Actionable Fix: This is frequently caused by too many 90-degree elbows or an excessively long run. Limit the number of elbows to a maximum of three and ensure the total equivalent length of the pipe does not exceed the manufacturer’s specifications.
- Root Cause: Excessive soot accumulation on the exterior wall.
- Actionable Fix: The horizontal termination cap may be too close to the siding. Install an extended exhaust snout or a shield to deflect the plume away from the home’s exterior finish.
Frequently Asked Questions
Can I vent my pellet stove through a regular metal chimney?
No, you cannot vent a pellet stove directly into an unlined masonry chimney. You must install a dedicated 3-inch or 4-inch stainless steel flexible liner inside the masonry chimney to ensure proper exhaust velocity and to prevent the accumulation of moisture and creosote within the large cavity.
Is it necessary to use high-temp silicone on every joint?
Yes, because pellet stoves operate under positive pressure—meaning the blower actively pushes air out—any gap in the venting system will result in exhaust gases being forced into your home. High-temperature silicone is the only reliable way to guarantee an airtight, pressure-resistant seal.
How often should the vent system be cleaned?
You should inspect and clean your pellet vent system at least once per season, or whenever you notice a decline in stove performance. If you burn low-quality pellets or notice excessive ash, you may need to clean the venting twice during the winter to prevent blockage.
Does the vent pipe need to be insulated?
If the pipe passes through unconditioned spaces like an attic or crawlspace, it is highly recommended to use insulated pipe sections to maintain exhaust temperature. Keeping the exhaust warm prevents condensation from forming inside the pipe, which can create a corrosive acidic slurry when mixed with ash.
Ensure Your Home’s Safety with Professional Venting Standards
Properly venting your pellet stove ensures optimal heating efficiency and protects your family from harmful exhaust gasses. Follow these professional guidelines to install your system correctly the first time and enjoy reliable, low-maintenance warmth all season long.
