How To Wind A Clock: The Complete Professional Horological Guide

To wind a mechanical clock safely, insert the correct-sized winding key or crank into the movement's winding arbors and rotate it smoothly until you feel firm, physical resistance. This process compresses the mainspring or raises the weights that power the gear train, which must be executed at consistent intervals—typically every seven days for standard eight-day movements—to prevent timekeeping drift and mechanical wear.

Horological Assessment and Pre-Winding Preparation

Before attempting to wind any mechanical timepiece, you must analyze its movement architecture. Mechanical clocks are powered by one of two methods: spring-driven movements, which utilize tightly coiled steel ribbons housed in mainspring barrels, or weight-driven movements, which rely on the gravitational pull of suspended iron or brass weights. Attempting to wind a clock without identifying its specific power source, winding direction, or tooling requirements can result in bent pivots, broken click-springs, or fractured mainsprings.

To preserve the delicate gear trains, brass plates, and steel arbors of vintage and modern clocks alike, compile the necessary tools and verify the mechanical parameters before applying physical force to the movement.

Required Equipment and Baseline Parameters

• Correctly Sized Winding Key or Crank: Mechanical clocks require a square-pocket key or crank that matches the winding arbors exactly. Standard sizes range from Number 000 (2.0 mm) up to Number 16 (6.5 mm or larger). Never use pliers, adjustable wrenches, or an ill-fitting key, as they will round off the square steel arbors.
• Horological Cotton Gloves: Heavy-gauge, lint-free white cotton gloves prevent the transfer of acidic skin oils and moisture to the polished brass bezel, delicate dial face, and lacquer-finished wood cabinets.
• Stable, Level Surface: For mantel, carriage, and bracket clocks, ensure the clock case rests on a perfectly level, vibration-free surface. Pendulum movements require absolute stability to maintain symmetrical oscillations.
• Timepiece Records Log: A simple maintenance journal to record winding intervals, regulation adjustments, and professional cleaning dates.
• Prerequisite Knowledge: Identify the number of winding arbors on the dial face. One arbor indicates a time-only movement; two arbors indicate a time-and-strike movement; three arbors indicate a time, strike, and chime movement (typically a Westminster or triple-chime configuration).
• Estimated Duration: 2 to 5 minutes.
• Operating Budget: $0 (assuming ownership of the winding key) to $25 for a high-quality brass multi-key selector.

Step-by-Step Mechanical Clock Winding Protocol

Follow these precise operational steps to wind spring-driven and weight-driven clocks safely. This procedure prevents damage to the click-work—the ratcheting safety mechanism that holds the mainspring's stored energy.

Step 1: Identify the Winding Arbors and Function Zones

Examine the face of your clock. Locate the winding arbors, which are the square-tipped steel shafts protruding through holes in the dial plate.

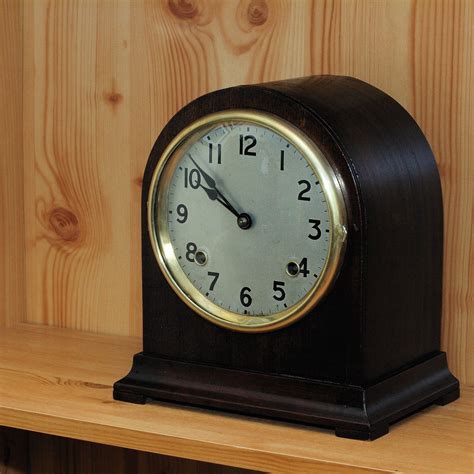

• Single-Arbor Clocks: The sole winding arbor is typically near the center or bottom of the dial and powers the timekeeping gear train.
• Two-Arbor Clocks: Usually positioned at the 4:00/5:00 and 7:00/8:00 coordinates. The right-hand arbor (near 4:00) typically powers the timekeeping train, while the left-hand arbor (near 8:00) powers the hour and half-hour strike train.

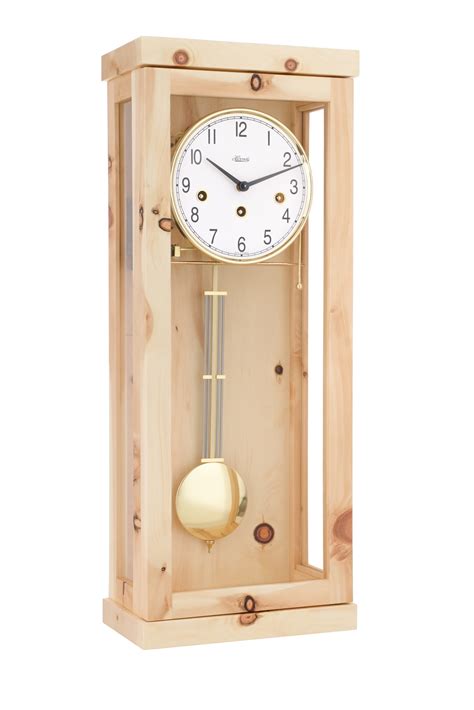

• Three-Arbor Clocks: Located at approximately 4:00, 6:00, and 8:00. The right arbor powers the quarter-hour chime melody, the center arbor powers the timekeeping train, and the left arbor powers the hour strike.

Step 2: Fit and Secure the Winding Tool

Put on your cotton gloves. Hold the clock case firmly with your non-dominant hand to prevent the entire cabinet from sliding or tipping. Slide the female square socket of the winding key or crank onto the target steel arbor. Push the key inward until it completely seats over the arbor. There must be zero play or wobble between the tool and the shaft.

Warning: Never attempt to wind a clock using a key that is even slightly too loose. If the key slips under the high tension of a partially wound mainspring, it will instantly strip the arbor, shatter the dial glass, or snap the delicate gear teeth within the movement.

Step 3: Establish the Correct Winding Direction

Winding directions vary significantly by movement manufacturer, age, and train function.

• As a general rule, many American and European spring-driven clocks wind in a clockwise direction on all arbors.
• However, many three-train clocks (such as those with Hermle, Urgos, or Jauch movements) require you to wind the outer arbors toward the center of the dial. This means the right arbor (chime) winds counter-clockwise, while the left arbor (strike) winds clockwise.
• Gently turn the key 10 to 15 degrees in one direction. Listen for a clean, sharp, metallic "clicking" sound. This click indicates that the steel pawl (the click) is riding smoothly over the ratchet wheel teeth, which is the correct winding direction. If you feel rigid resistance immediately without any clicking, stop instantly and try the opposite direction.

Step 4: Execute Controlled, Deliberate Winding Strokes

With the key fully seated and the winding direction verified, begin turning the key. Use slow, half-turn (180-degree) rotations. Do not use rapid, jerky motions, and never let go of the key mid-stroke. Keep your wrist aligned with the arbor shaft to avoid applying lateral, bending pressure to the pivot.

As you wind, listen to the rhythmic click-work. This clicking confirms that the safety pawl is locking the ratchet wheel in place after every increment of rotation, preventing the spring from violently unwinding.

Step 5: Sense and Respect Terminal Resistance

For spring-driven clocks, you will notice the winding resistance increase gradually as the steel mainspring coils tighter inside its barrel. Continue winding slow half-turns until you feel a distinct, firm resistance. This is the terminal winding point where the spring is fully coiled. Stop immediately.

Pro-Tip: The common term "overwinding" is technically a misnomer. A clean, properly lubricated clock movement cannot be damaged simply by winding it until it stops turning. The damage occurs when an operator uses brute force to twist the key past this natural limit, or when old, dried oil causes the gear train to seize, leading the operator to believe the clock is "overwound" when it is merely dirty.

Step 6: Maintain Weight-Driven Cable and Chain Systems

If your clock uses weights suspended by cables or chains (such as grandfather clocks or cuckoo clocks), the winding process differs:

• Cable-Driven Movements: Insert the winding crank into the dial holes. Crank the tool to wind the steel cable onto a brass drum, lifting the weight upward. Stop cranking when the top of the weight casing is approximately two inches below the wooden movement bottom board to prevent jamming the cable guide.
• Chain-Driven Movements: Do not use a key. Support the clock case, grasp the unweighted side of the brass chain hanging below the movement, and pull directly downward in a smooth, continuous vertical motion. Lift the weight until it is positioned just below the dial board. Never lift the weight by hand while pulling the chain, as this can cause the chain links to jump off the pocket wheel sprocket inside the movement.

Step 7: Re-Establish Pendulum Beat (If Stopped)

If the clock stopped running prior to winding, you must restart the pendulum to put the clock back "in beat." Gantly push the pendulum bob to one side—no more than one inch from the center line—and release it. Listen to the acoustic output. The "tick-tock" sound must be perfectly symmetrical in both tempo and volume (e.g., tick...tock...tick...tock). If it sounds uneven (e.g., tick-tock......tick-tock), the clock is out of beat. Gently nudge the upper portion of the pendulum leader (the crutch) left or right until the steady, even rhythm is restored.

Mechanical Clock Types, Arbor Functions, and Technical Specifications

The following table summarizes the structural differences, winding cycles, and direction patterns across the most common historical and modern mechanical clock movements.

Common Horological Failures and Mechanical Remedies

When winding a clock, you may encounter mechanical resistance or failures. Use this diagnostic matrix to identify root causes and apply precise fixes.

The Clock Stops Running Shortly After Winding

• Root Cause 1: Out-of-Beat Pendulum. The clock case is slightly tilted or the internal crutch mechanism has shifted, causing an uneven path of oscillation for the pallets on the escapement wheel.


  • Actionable Fix: Verify that the clock case is perfectly level using a spirit level. Listen to the tick-tock sound. If it is irregular, gently tilt the clock cabinet slightly to the left or right until the beat becomes uniform, then shim the bottom of the case to keep it in that position.
• Root Cause 2: Dried or Gummy Pivot Oil. Old organic oils inside the gear train have oxidized and turned into a sticky paste, absorbing dust and creating enough friction to overcome the torque of the wound mainspring.


  • Actionable Fix: Do not apply household lubricants (like WD-40 or cooking oils) under any circumstances. The movement must be extracted from its cabinet, chemically cleaned in an ultrasonic horological bath, and re-lubricated with synthetic micro-oils (such as Moebius 8000 or 9000 series) applied exclusively to the pivot sinks and escapement faces.

The Winding Key Spins Freely Without Tension or Clicking

• Root Cause: Failed Click-Work Assembly. The click (pawl) or the click-spring (the spring that forces the pawl into the ratchet teeth) has broken, slipped out of position, or stripped its rivet. The mainspring cannot hold its tension.


  • Actionable Fix: Stop trying to wind the clock. If the click-spring is broken, the mainspring will violently unwind as soon as you release the key, which can warp gears and shear teeth. The movement must be disassembled by a clockmaker to replace the click-spring or rivet the pawl back into place.

The Weights Fail to Rise When Pulling the Chains

• Root Cause: Dislodged Chain or Worn Pocket Wheel. The drive chain has jumped off the pocket-wheel sprocket inside the movement plates, or the brass sprocket teeth have worn down, allowing the chain links to slip.


  • Actionable Fix: Take the weight off the hook to relieve tension. Inspect the sprocket wheel through the side of the movement. Using a pair of long-nose tweezers, guide the chain back into the center groove of the pocket wheel. If the sprocket teeth are worn smooth, the pocket wheel must be replaced or rebuilt by a professional machinist.

The Winding Key Will Not Turn at All

• Root Cause: Seized Escapement or Fully Wound Mainspring. The clock is already wound to its physical limit, but the energy is locked because the escapement (the balance wheel or pendulum verge) is not oscillating, preventing the gear train from releasing power.


  • Actionable Fix: Check the hands. If they are locked or touching each other, gently separate them. Inspect the pendulum suspension spring at the very top of the movement; if it is bent or broken, the pendulum cannot swing. Replace the suspension spring to allow the escapement to cycle, which releases the stored winding tension naturally.

Frequently Asked Questions

Can you overwind a mechanical clock?

No, a clock cannot be overwound. When a clock is wound until the key will no longer turn, it is simply fully wound. If a clock stops running after being wound, the cause is almost always dried, sticky lubricating oil, dirt accumulation in the gear teeth, or a worn escapement pivot, not the tension of the mainspring.

How often should I wind my 8-day mechanical clock?

You should wind your 8-day clock once every seven days (on a consistent weekly schedule, such as every Sunday morning). Winding it every seven days ensures the clock runs on the middle, most consistent portion of the mainspring's torque curve, which dramatically improves timekeeping accuracy compared to letting the spring run down to its eighth day of reserve.

Why does my clock wind clockwise on one side and counter-clockwise on the other?

In many two-train and three-train clocks, the winding directions are mirrored to prevent the winding action from placing uneven wear on the main plates. This setup is common in German movements, where the strike and chime trains wind toward the center of the dial to balance the internal lateral forces on the gear arbors.

What should I do if my winding key is lost or does not fit?

Measure the square tip of the winding arbor precisely using a digital caliper in millimeters. Once you have this measurement, purchase a dedicated brass key or a star-shaped "multi-key" that matches that size. Never attempt to use a socket wrench or pliers, as these tools will deform the steel arbor and make future winding impossible.

Should I remove the pendulum before winding or moving the clock?

You do not need to remove the pendulum for normal winding. However, you must always remove the pendulum bob and leader before moving or transporting the clock even a short distance. Leaving the pendulum attached during movement can bend or snap the extremely delicate, thin steel suspension spring at the top of the movement.

Professional Horological Care and Restoration

Proper winding is only the first step in preserving the precision and beauty of your mechanical timepiece. If your clock continues to run slowly, fails to strike on time, or requires professional mechanical lubrication, seek out an authorized horological restoration specialist to ensure its survival for generations to come.
