How To Winterise A Swamp Cooler For Maximum Longevity
Winterising your evaporative cooler, commonly known as a swamp cooler, protects its water lines, pump, and cabinet from freezing temperatures, mineral scaling, and rust. Completing this seasonal shutdown procedure before the first hard freeze prevents costly cracked reservoirs, damaged water distribution tubes, and premature blower motor failure.
Pre-Operation and Equipment Checklist for Seasonal Shutdown
Preparing your evaporative cooler for winter requires a methodical approach to safeguarding both the mechanical components and the structural integrity of the housing unit. Neglecting this seasonal transition leaves the water supply line vulnerable to freeze-bursts and invites corrosive mineral crusts to degrade the interior metal surfaces.
Before climbing onto the roof or accessing ground-level side-draft units, gather the necessary protective gear, hand tools, and replacement supplies to execute a thorough maintenance cycle.
- Essential Gear, Tools, and Materials: Adjustable wrench, tongue-and-groove pliers, 5-in-1 painters tool or stiff wire brush, wet/dry shop vacuum, clean rags, vinegar or commercial scale remover, replacement rigid media pads or aspen pads, replacement water panel filter (if applicable), and an approved exterior insulated cooler cover or heavy-duty weather-resistant canvas.
- Mandatory Prerequisite Knowledge and Standards: Familiarity with residential water shut-off valve locations, basic electrical safety protocols (always de-energize the unit at the main breaker before servicing), and local plumbing code requirements for exterior winter drainage.
- Budget and Duration Benchmarks: Estimated financial investment ranges from twenty to fifty dollars for new pads, sealants, and winter covers if replacing worn consumables. Total execution time spans between one to two hours for a single-unit residential setup.
Step-by-Step Evaporative Cooler Winterisation Workflow
Step 1: Disconnect Power and Water Supply
Begin by turning off the swamp cooler at the indoor wall thermostat and completely killing the electrical power at the main circuit breaker panel to eliminate any risk of accidental motor engagement. Locate the dedicated exterior water shut-off valve that feeds the supply line to the cooler and turn it to the closed position.
Warning: Never rely solely on the small bleed-off or inline valve located immediately adjacent to the cooler housing, as residual pressure and freezing ambient air can easily rupture supply lines running up the exterior wall.
Step 2: Drain and Clean the Water Reservoir
Remove the access panels on the sides of the cooler to expose the interior water basin. Open the drain plug or remove the standpipe assembly to completely empty all standing water from the reservoir. Use a wet/dry shop vacuum to suck out remaining sludge, sediment, and mineral deposits accumulated at the bottom of the basin. Scrub the interior metal surfaces with a stiff-bristle brush and a mixture of white vinegar and water to dissolve stubborn calcium scale. Rinse the basin thoroughly with clean water and dry all surfaces completely with a towel to inhibit rust formation throughout the winter months.
Step 3: Remove and Replace Cooling Pads
Carefully slide out the old cooling pads from their frames. If you use traditional aspen wood-wool pads, discard them immediately, as they trap moisture, breed bacteria, and decompose over the winter, attracting pests. If your unit features rigid cellulose cooling media, inspect them for structural integrity; if they show signs of heavy mineral crusting or disintegration, remove them as well. Clean out any debris lodged in the pad frames before installing fresh pads or leaving the frames empty until spring, depending on your local climate preferences and cover specifications.
Step 4: Protect the Water Pump and Bleed-Off Valve
Detach the water pump from its mounting bracket or base, wipe it completely clean, and store it in a dry indoor location for the winter to prevent internal moisture from freezing and cracking the plastic housing. Alternatively, if the pump remains installed, ensure it is completely disconnected from power and elevated above the bottom of the dry basin wrapped in a plastic bag. Disconnect the small bleed-off tee and tubing, drain all residual water, and store the components safely inside.
Pro-Tip: Apply a light coating of non-toxic plumber silicone grease to all rubber O-rings, pump inlets, and quick-disconnect fittings to keep them supple and prevent dry-rotting during long months of disuse.

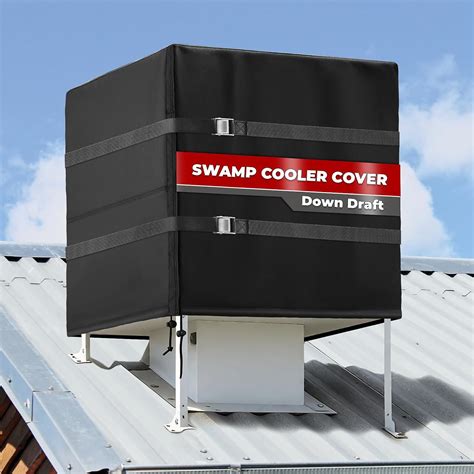

Step 5: Install the Exterior Weather Cover
Inspect the exterior ductwork, flashing, and roof curb for any gaps, cracks, or compromised flashing that could allow winter rain or snow to leak into the interior living spaces. Seal any suspicious seams with exterior-grade silicone caulk or polyurethane roofing sealant. Slip a heavy-duty, custom-fit canvas or vinyl swamp cooler cover entirely over the top and sides of the unit. Secure the integrated drawstrings, elastic hems, or securing straps tightly around the base of the cabinet to prevent high winter winds from tearing or dislodging the protection barrier.
(READ FULL POST) 41" Swamp Cooler, 3531 CFM Evaporative Air Cooler with ...
Swamp Cooler Winterisation Method and Material Specifications
| Component / Parameter | Standard Winter Status | Inspection Criteria | Maintenance Action |
|---|---|---|---|
| Water Supply Line | Shut off and blown out | Check for residual pressure or moisture | Close main valve, insulate exterior pipe run |
| Water Reservoir | Drained and dried | Check for rust pitting, scale, and debris | Scrape scale, vacuum sludge, towel dry |
| Cooling Pads | Discarded or cleaned | Check for rotting fibers and mineral buildup | Replace aspen pads annually; clean rigid media |
| Water Pump | Stored indoors or elevated | Check for impeller blockage and cracks | Detach, dry thoroughly, store in conditioned space |
| Cabinet Exterior | Sealed and covered | Check for loose panels, cracks, and gaps | Apply caulk to seams, fit heavy weather cover |
Common Swamp Cooler Winter Failures and Field Fixes
- Root Cause: Residual water trapped inside the copper or PEX supply line freezes and expands during sub-zero nights, causing the pipe to split inside the exterior wall.
- Actionable Fix: Shut off the water supply inside the heated portion of the house, open the exterior drain cock, and use a compressed air tank to blow out every drop of water remaining in the vertical riser pipe.
- Root Cause: Heavy calcium and mineral scale left sitting in the damp reservoir over the winter accelerates galvanic corrosion, eating through the galvanized steel basin floor.
- Actionable Fix: Thoroughly neutralize and remove all scale with an acidic cleaner, dry the metal completely, and apply a specialized rubberized cooler-coating sealant across the entire interior basin floor.
- Root Cause: Loose weather covers catch high winter gusts like a sail, ripping away from the unit and exposing the fragile blower motor, pulleys, and belt to snow accumulation.
- Actionable Fix: Upgrade to a heavy-duty marine-grade canvas cover equipped with industrial buckle straps and wrap a heavy-duty nylon bungee cord securely around the entire perimeter of the cabinet base.
Frequently Asked Questions
Can I leave my swamp cooler running during winter?
No, operating an evaporative cooler during freezing weather is dangerous and counterproductive. The system relies on water evaporation to cool air, which will freeze instantly in sub-zero temperatures, forming massive ice blocks that crush the pads, jam the blower wheel, and burst the water lines.
Should I take the belt off the motor for winter?
Removing the fan belt is not strictly mandatory, but it is a recommended best practice. Taking the belt off relieves continuous tension on the motor bearings and prevents the belt from taking a permanent curved "set" or dry-rotting around the pulleys while sitting idle for months.
Do I need to cover the indoor ceiling register?
Yes, installing a magnetic or insulated interior vent cover over your ceiling diffusers prevents cold outdoor air from drafting down through the ductwork into your living space. This simple step significantly reduces home heating loss and prevents drafts throughout the winter heating season.
How do I protect the exterior ductwork from rust?
Inspect the metal duct transition pieces connected to your swamp cooler for chipped paint or failing mastic sealant. Wire-brush any surface rust spots down to bare metal, apply a rust-inhibitive metal primer, finish with a coat of matching exterior enamel paint, and seal all seams with heavy-duty flashing tape.
Is it necessary to disconnect the float valve?
You do not need to completely remove the float valve assembly, but you must ensure it is completely dry and drained of water. Unscrew the plastic float ball if it is removable, dry the valve body thoroughly, and leave the float arm in the raised, closed position to keep the valve seat from sticking.
