How To Wire An Electric Choke: A Step-by-Step Carburetor Installation Guide

Wiring an electric choke requires connecting a 12-volt positive (+12V) switched ignition source to the choke cap terminal while ensuring a solid chassis ground for the internal heating element. Connecting directly to the ignition coil positive wire must be avoided, as ignition ballasts drop system voltage below operational thresholds. A properly installed 10-amp fused connection ensures rapid thermostatic coil heating, preventing rich engine flooding and maintaining a smooth engine idle during cold starts.

Pre-Installation Equipment Checklist and System Specs

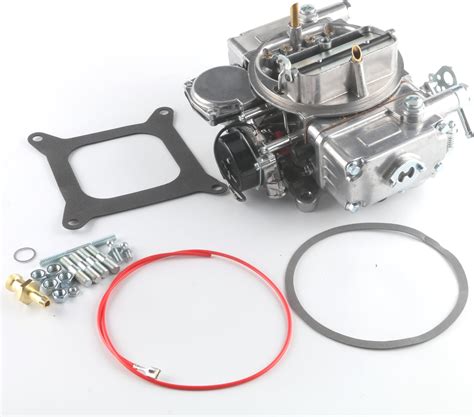

Converting a manual choke or replacing an old thermal pull-off choke with an electric choke system optimizes air-fuel ratios during engine warmup. An electric choke relies on an internal bimetallic spring heater element. When electrical current passes through this element, it heats up, gradually expanding and opening the choke plate over a pre-determined two-to-five-minute window.

Executing this installation cleanly requires standard automotive wiring tools and an understanding of key-on electrical distribution circuits. Working on classic vehicles equipped with Holley, Edelbrock, Rochester Quadrajet, or Carter carburetors requires sourcing true 12-volt ignition-switched power to prevent battery drain while the vehicle is parked.

Installation Requirements & Resource Benchmarks

• Essential Tools & Fasteners: Digital multimeter (DMM), 14-to-16 AWG stranded copper primary wire (red and black), 5-to-10 amp inline ATO/ATC blade fuse holder, female crimp spade terminals (0.250-inch), ring terminals (5/16-inch or 3/8-inch for ground), automatic wire strippers, ratcheting terminal crimper, heat shrink tubing, and protective wire loom.
• Mandatory Prerequisites: Knowledge of vehicle fuse block layouts, multimeter voltage/resistance testing procedures, and firewall grommet passage safety.
• Budget & Duration Benchmarks: Total material cost ranges between $15 and $30. Total project completion time takes approximately 30 to 60 minutes for basic engine bays.

Step-by-Step Electric Choke Wiring Instructions

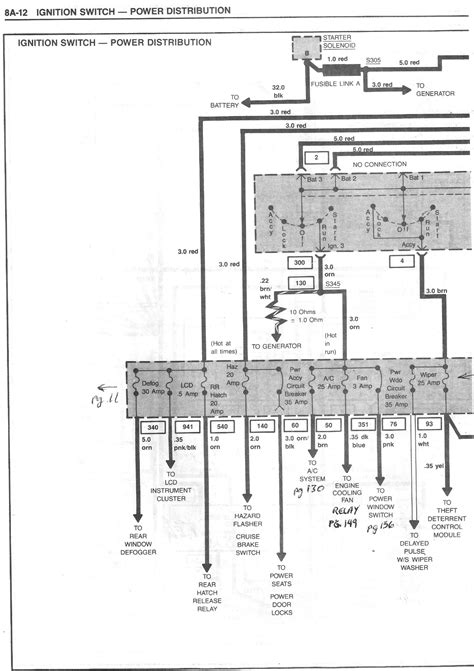

Step 1: Locate and Verify an Ignition-Switched 12-Volt Power Source

1. Set your digital multimeter to DC Voltage mode (20V scale).
2. Connect the black probe of the multimeter to a clean chassis ground, such as an unpainted engine bolt or cylinder head terminal.
3. Access your vehicle fuse block or accessory power harness under the dashboard or engine compartment.
4. Touch the red probe to potential power terminal feeds (often labeled IGN, ACC, or RUN) while the ignition key is in the OFF position. The multimeter must read 0.0 Volts.
5. Turn the ignition key to the ON (RUN) position without starting the starter motor. The multimeter should read full battery system voltage, between 12.0 and 12.8 Volts DC.
6. Turn the key to the START position to confirm the terminal maintains power during cranking, or recovers immediately upon key release to the RUN position.

Warning: Never connect an electric choke wire to the positive (+) terminal of an ignition coil. Standard ignition systems utilize ballast resistors or internal resistance wires that drop voltage down to 6–9 volts during operation. Low voltage prevents the electric choke heater from warming fully, leaving the choke plate partially closed and causing rich fuel conditions, spark plug fouling, and poor fuel economy.

Step 2: Install an Inline Protection Fuse

1. Select an inline fuse holder fitted with 14 AWG or 16 AWG lead wires.
2. Strip 3/8-inch of insulation from one lead of the inline fuse holder using wire strippers.
3. Crimp the fuse holder lead directly to your identified ignition-switched 12V supply wire using an insulated butt connector or by soldering and applying adhesive-lined heat shrink tubing.
4. Insert a 5-amp or 10-amp blade fuse into the holder. Do not exceed a 10-amp fuse, as higher amperages can overheat the small choke heating element in the event of an internal short circuit.

Step 3: Route and Connect the Positive Terminal Harness

1. Cut a length of 14 AWG or 16 AWG red primary wire long enough to reach from your fused power source to the carburetor choke housing on the passenger side of the engine bay.
2. Cover the wire run with split-braid or corrugated high-temperature plastic wire loom to protect against abrasion and engine heat.
3. Route the harness away from exhaust manifolds, headers, throttle linkages, and moving fan blades. Secure the wire harness every 8 to 12 inches using zip ties.
4. Strip 1/4-inch of insulation from the carburetor end of the positive wire.
5. Crimp a female 0.250-inch spade connector securely onto the stripped wire end. Slide a protective heat shrink sleeve over the crimp base to shield against moisture.
6. Push the female spade connector firmly onto the positive (+) male terminal on the electric choke thermostat cap.

Pro-Tip: Factory Ford vehicles equipped with original Motorcraft carburetors often ran the choke off the Alternator Stator (STA) port. The STA port outputs roughly 7 Volts AC (Alternator Current). While factory Motorcraft chokes are designed for this AC voltage, aftermarket carburetors like Holley 4160 or Edelbrock Performer series require full 12V DC power. Verify your carburetor manufacturer specifications before selecting your power source.

Step 4: Establish a Clean Ground Path

1. Inspect the electric choke cap assembly. If the choke housing features a single positive (+) terminal, it grounds internally through the carburetor body to the intake manifold. Verify that the carburetor base gasket does not completely isolate the carburetor from engine ground.
2. If the choke housing features two male terminals (labeled + and -), you must install a dedicated negative ground wire.
3. Cut a length of 14-16 AWG black primary wire long enough to stretch from the choke cap to an intake manifold bolt or dedicated engine ground block.
4. Crimp a female 0.250-inch spade connector to one end of the black wire and attach it to the negative (-) terminal on the choke cap.
5. Crimp an appropriately sized ring terminal (typically 5/16-inch or 3/8-inch) to the opposite end of the black wire.
6. Remove paint, rust, or oxidation from the target grounding bolt surface using a wire brush until bright metal is exposed. Secure the ring terminal beneath the bolt and tighten to manufacturer torque specs.

Step 5: Validate System Operation and Adjust Choke Plate Opening

1. Leave the engine OFF and turn the ignition key to the ON position.
2. Measure voltage across the positive (+) choke terminal and negative (-) ground terminal using your multimeter. Verify reading shows 12.0V DC to 12.6V DC.
3. Remove the air cleaner assembly to observe the choke plate position.
4. On a cold engine, tap the throttle lever once to release the fast idle cam. The choke plate should spring nearly fully closed, leaving an air gap between 1/8-inch and 3/16-inch depending on ambient temperature settings.
5. Keep the ignition key in the ON position for 3 to 5 minutes without running the engine. Feel the black plastic choke cap; it should feel warm to the touch.
6. Watch the choke blade gradually rotate into a completely vertical (90-degree fully open) position as the internal bimetallic spring warms up.
7. Turn off the ignition, reinstall the air cleaner, and start the engine to set the final cold fast-idle RPM according to carburetor manual specifications.

Electric Choke Power Source Comparison & Technical Specifications

Selecting the correct terminal power source prevents electrical system overloads and guarantees correct choke timing. The following technical matrix compares potential engine bay power connections:

Diagnostic Guide: Common Electric Choke Failures and Remedies

Scenario 1: Engine Runs Extremely Rich, Emits Black Smoke, and Stalls Warm

• Root Cause: The electric choke plate remains fully or partially closed after the engine reaches operating temperature due to zero or low voltage supplied to the choke cap.
• Actionable Fix: Probe the positive (+) choke terminal with a multimeter while the engine is running. If voltage is below 11.5V DC, inspect the wire for connection to an ignition coil ballast resistor wire. Re-route the positive supply lead directly to a dedicated 12V switched terminal on the main vehicle fuse box.

Scenario 2: Engine Stalls at Intersections During Cold Warm-Up Operations

• Root Cause: The choke spring expands too rapidly, pulling the choke plate wide open before the engine intake manifold has absorbed enough heat to vaporize atomized fuel properly.
• Actionable Fix: Loosen the three perimeter hold-down screws on the black plastic choke housing cap. Rotate the cap counterclockwise (towards the RICH indicator mark) by 1 to 2 notch notches on the cast index scale. Retighten the retaining screws to increase spring resistance and delay opening speed.

Scenario 3: Inline Protection Fuse Blows Immediately When Key Is Turned ON

• Root Cause: Direct electrical short circuit caused by a pinched positive lead wire shorting against the engine block, or an internal breakdown of the ceramic choke heating element.
• Actionable Fix: Disconnect the red wire spade terminal from the choke cap. Replace the fuse and turn the key ON. If the fuse remains intact, the short is internal to the choke cap. Disconnect power, set the multimeter to Ohms ($\Omega$), and measure resistance between the choke positive pin and ground. A reading below 4 Ohms indicates an internal short; replace the choke cap assembly.

Scenario 4: Battery Is Completely Discharged After Vehicle Sits Overnight

• Root Cause: The positive wire was accidentally connected to an unswitched continuous 12V power circuit (Battery Direct). The element continuously drew 2 to 4 Amps while the engine was turned off.
• Actionable Fix: Re-test your selected supply source using a multimeter. Ensure power turns off completely (0.0V DC) when the ignition key is switched to the OFF position and removed. Move the choke positive feed to an ignition-switched fuse tap circuit.

Frequently Asked Questions

Can I wire an electric choke directly to the battery?

No, connecting an electric choke directly to a constant battery positive source will cause the heater element to draw continuous current while the vehicle is parked. This constant 2-to-4 amp parasitic draw will completely discharge the vehicle battery overnight and burn out the choke heating element.

What gauge wire should I use for an electric choke?

Use 14 AWG or 16 AWG stranded copper primary wire for wiring an electric choke circuit. This gauge size safely handles the continuous electrical current without experiencing resistive heating or voltage drops over the length of the engine bay run.

Why can't I wire an electric choke to the positive coil terminal?

Traditional ignition systems use a resistor wire or ballast resistor to drop voltage at the positive coil terminal to 6–9 volts during normal operation. An electric choke requires a full 12 volts to reach operating temperature; lower voltage prevents the internal spring from expanding completely, leaving the choke plate partially closed.

How do I adjust an electric choke after wiring it?

Loosen the three small retaining screws surrounding the black plastic choke cap. Rotate the cap clockwise toward "Lean" to make the choke open faster, or counterclockwise toward "Rich" to keep the choke closed longer during cold starts. Tighten the screws once set to the desired index mark.

Does an electric choke draw power when the engine is turned off?

An electric choke will not draw power when the engine is off if it is wired correctly to an ignition-switched power source. Once the ignition key is turned to the OFF position, power to the switched circuit cuts off entirely, allowing the bimetallic spring to cool down and reset for the next cold start.
