How To Wire Solar Panels In Parallel: A Step-by-Step Electrical Guide

Wiring solar panels in parallel keeps the system voltage equal to a single panel's maximum power voltage rating while summing their individual amperages. This parallel configuration is achieved by linking all positive terminals together and all negative terminals together using MC4 Y-branch connectors or a dedicated PV combiner box. This low-voltage, high-current setup is the industry standard for 12V or 24V off-grid battery banks, RV power systems, and arrays prone to partial shade.

Pre-Wiring Analysis, Tool Selection, and Electrical Safety Benchmarks

Before beginning any physical wiring, you must evaluate the electrical specifications of your solar panels. For a parallel solar array to operate safely and at peak efficiency, all connected panels should ideally have identical Maximum Power Voltage (Vmp) and Open Circuit Voltage (Voc) ratings. If you wire panels with mismatched voltages in parallel, the entire array's voltage will drop to match the level of the lowest-voltage panel, causing significant power losses and driving up heat generation within the lower-voltage modules.

Additionally, parallel wiring significantly increases the total current (amperage) flowing through your system. You must ensure that your downstream equipment—such as the solar charge controller, overcurrent protection devices, and system cabling—is rated to handle the combined Short Circuit Current (Isc) of all panels multiplied by a safety factor of 1.25, as mandated by National Electrical Code (NEC) Article 690.

Technical Checklist and Project Metrics

• Required Materials: MC4 Y-branch connectors (available in 2-to-1, 3-to-1, or 4-to-1 configurations) or a UL 1741 certified PV combiner box, inline MC4 fuse holders, appropriate fuses (sized to 1.56 times the panel's Isc), and heavy-duty UV-resistant PV wire (10 AWG to 8 AWG depending on distance).
• Essential Tools: Digital multimeter (DMM) with DC current clamp, MC4 assembly/disconnect tool, wire strippers, heavy-duty crimping tool, and UV-resistant outdoor cable ties.
• Prerequisite Knowledge: Understanding the difference between Series (additive voltage) and Parallel (additive current) systems, basic electrical safety protocols, and the location of your equipment's maximum DC input current limit.
• Project Benchmarks:


  • Estimated Budget: $30 to $150 (excluding panels and charge controller, covering connectors, fuses, and wiring).
  • Project Duration: 1 to 3 hours depending on array size and mounting location accessibility.
  • Target Efficiency Limit: Maintain system voltage drop below 2% between the solar array and the charge controller.

Step-by-Step Installation: Executing a Safe Parallel Solar Array Connection

Step 1: Electrical Matching and Specification Verification

Examine the specification labels on the back of every solar panel in your array. Record the Open Circuit Voltage (Voc), Maximum Power Voltage (Vmp), and Short Circuit Current (Isc). Ensure the Vmp of each panel is within 5% of the others.

Calculate the total expected current of your parallel array by adding the Isc ratings of all panels together. For example, if you have four 100-watt solar panels, each with a Vmp of 18V and an Isc of 6.1A, your parallel array will have a total voltage of 18V and a combined short-circuit current of 24.4A. Ensure your charge controller can handle at least 30.5A of input current (24.4A multiplied by the 1.25 safety factor).

Warning: Never attempt to connect panels with highly mismatched nominal voltages (such as mixing a 12V nominal panel with a 24V nominal panel) in parallel. Doing so can cause reverse current flow into the lower-voltage panel, leading to localized cell overheating, bypass diode failure, and potential fire hazards.

Step 2: Component Layout and Safe Cable Management

Mount your solar panels securely in their final positions on your roof, ground mount, or vehicle rack. Ensure the integrated MC4 output cables can comfortably reach each other or the central Y-branch connectors without stretching.

Organize the cables so they do not rest directly on rough surfaces or sharp metal edges of the mounting racks. Use UV-stabilized zip ties or stainless steel module clips to secure the loose wires to the panel frames, keeping them off the ground or roof where water can pool.

Step 3: Installing Inline Fuses for Overcurrent Protection

Under NEC regulations, when you wire three or more solar panels in parallel, you must install an overcurrent protection device (fuse) on each parallel branch. If one panel develops a short circuit, the other parallel panels will discharge their combined current into the shorted panel, exceeding its maximum series fuse rating and risking a thermal event.

Insert an inline MC4 fuse holder into the positive lead of each individual solar panel before it connects to the Y-branch connector. Size the fuse to match the Maximum Series Fuse Rating printed on the panel's backplate label (typically 15A for 100W–150W panels). If your panel label does not specify this, calculate the fuse size by multiplying the panel's Isc by 1.56 and rounding up to the nearest standard fuse size.

Pro-Tip: Do not skip fusing when parallelizing three or more panels. While a two-panel parallel system does not require fusing because one panel cannot produce enough current to overload the other, any system with three or more parallel paths presents a severe fire hazard without individual branch fuses.

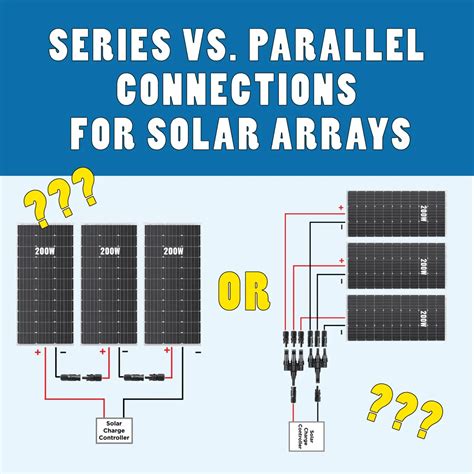

Step 4: Connecting the MC4 Y-Branch Connectors

With your inline fuses secured on the positive lines, bring the positive output cables of your panels together. Plug the positive cables (now fused) into the female input ports of your positive MC4 Y-branch connector. You should hear a distinct physical "click," indicating that the waterproof locking tabs have fully engaged.

Next, gather the negative output cables from all panels and plug them into the male input ports of your negative MC4 Y-branch connector. Ensure all connections are secure by giving each cable a gentle tug. You are now left with one main positive output and one main negative output from the Y-branch connectors, consolidating your multiple panel runs into a single circuit.

Step 5: Routing Heavy-Gauge Home Run Cables

Because parallel systems operate at high currents and low voltages, they are highly susceptible to voltage drop over long wire runs. Connect high-quality, outdoor-rated PV wire (typically 10 AWG or 8 AWG) to the main positive and negative outputs of your Y-branch connectors. These primary transmission lines, often called "home run" cables, will carry the combined amperage of the entire array to your charge controller.

If your array consists of four or more large panels, or if the run to your charge controller exceeds 15 feet, transition from Y-branch connectors to a physical, weather-rated PV combiner box. Inside the combiner box, the individual panel wires land on a common busbar, allowing you to run a single pair of thick, low-resistance conductors (such as 6 AWG or 4 AWG copper wire) to your battery charging equipment.

Step 6: Multimeter Testing and Commissioning

Before plugging your main positive and negative cables into your charge controller or combiner box, you must verify the electrical integrity of your work. Set your digital multimeter to the DC Voltage setting. Insert the red probe into the positive home run connector and the black probe into the negative connector.

Measure the open-circuit voltage. The reading on your multimeter should match the Voc of a single panel (typically between 18V and 24V for standard 12V nominal panels). If the voltage reads significantly lower, or if it reads zero, disconnect the array and check each connection for polarity errors or tripped inline fuses. Once the voltage is verified, switch your multimeter to measure DC amps (using a clamp-on current meter around one of the main cables) to confirm that the array is generating current proportional to the available sunlight.

Technical Parameters and Wire Gauge Selection Standards

To prevent performance loss and hazardous wire overheating, you must select the correct wire size based on the combined amperage of your parallel array and the total run distance. The table below outlines critical parameters and wire sizing requirements to maintain a voltage drop below the industry-standard 2% threshold at 12 Volts DC.

Diagnostic Guide: Troubleshooting Parallel Wiring Failures

Scenario 1: Total Array Current is Significantly Lower Than Calculated Rating

• Root Cause: A blown inline MC4 fuse on one of the parallel panel strings, a failed bypass diode inside a single panel's junction box, or a loose MC4 connection. In a parallel circuit, if one string drops offline, the remaining panels keep functioning, masking the failure of the dead panel except for a drop in total current output.
• Actionable Fix: Shade-test or isolate each panel individually. Disconnect the main Y-branch connectors and measure the Short Circuit Current (Isc) of each panel independently using a clamp-on multimeter under direct sunlight. Replace any blown inline fuses, check for damaged pins inside the MC4 connectors, and replace the panel's bypass diodes if a single panel shows zero voltage in daylight.

Scenario 2: Severe Voltage Drop and Slow Battery Charging

• Root Cause: Undersized home run cables running from the Y-branch connectors to the charge controller, or a wire run that is too long for the system voltage. Operating a 12V or 24V parallel system over long distances with standard 12 AWG or 10 AWG wire creates massive resistance, converting electrical energy into heat instead of sending it to the battery.
• Actionable Fix: Use a digital multimeter to measure the voltage at the output of the Y-branch connectors and compare it to the voltage reading at the input terminals of the charge controller. If the difference is greater than 0.5V, upgrade your home run cabling to a thicker gauge (such as 8 AWG or 6 AWG) or shorten the physical distance between your solar array and the charge controller.

Scenario 3: Melting MC4 Connectors or Overheating Junction Boxes

• Root Cause: Poorly crimped MC4 pins, mismatched MC4 connector brands, or exceeding the rated current capacity of the Y-branch connectors. Many standard Y-branch connectors are only rated to handle a maximum of 30 Amps. Exceeding this limit causes extreme resistive heating at the junction point.
• Actionable Fix: Immediately shut down the system by disconnecting the solar array under zero-load conditions (cover the panels or open the DC disconnect switch). Inspect all connectors for signs of warping or scorching. Cut off damaged connectors and crimp on high-quality, matching MC4 terminals using a dedicated ratcheting crimping tool. If your array output exceeds 30A, replace the Y-branch connectors with a fused combiner box.

Frequently Asked Questions

Can you mix different wattage solar panels in parallel?

Yes, you can mix different wattage solar panels in parallel, but only if their Maximum Power Voltage (Vmp) ratings are nearly identical (within 5% of each other). Because parallel wiring keeps system voltage constant, the panels will run at the lowest voltage in the group; however, their currents (amperages) will add together normally regardless of individual panel wattages.

Do I need a fuse for every panel in a parallel circuit?

You do not need inline fuses if you are wiring only two solar panels in parallel. If you are wiring three or more panels in parallel, you must install an inline fuse on the positive lead of each panel to prevent a short-circuited panel from being overloaded by the combined backfeed current of the remaining panels.

How many solar panels can I wire in parallel?

The maximum number of panels you can wire in parallel is limited by the maximum input current rating of your solar charge controller and the ampacity limit of your system wiring. Because current is additive in parallel, adding more panels requires increasingly thicker copper wire and larger controller capacities to manage the high amperage safely.

Why would I choose to wire panels in parallel instead of series?

Parallel wiring is ideal for systems that experience partial shading, as shaded panels do not drag down the performance of the unshaded panels in the array. It is also the preferred choice for low-voltage off-grid power systems, such as RVs, campervans, and marine applications, that use Pulse Width Modulation (PWM) or low-voltage Maximum Power Point Tracking (MPPT) charge controllers.
