How To Wire A Trailer Brake Controller: A Complete Step-by-Step Installation Guide

Installing a trailer brake controller involves integrating a four-wire system into your vehicle's electrical architecture to manage electric trailer brakes via a 7-way connector. The process requires establishing a dedicated 12V power feed, a secure chassis ground, a signal tap from the cold side of the stop lamp switch, and a dedicated output line to the trailer plug. Successful installation ensures proportional or time-delayed braking force, maintaining vehicle stability and reducing stopping distances during heavy towing operations.

Pre-Installation Planning and Equipment Requirements

Before initiating the electrical integration of a brake controller, it is imperative to distinguish between a vehicle equipped with a factory tow package and one that requires a "hardwire" installation. Vehicles with a factory tow package often feature a dedicated plug-in port under the dashboard, allowing for a seamless harness connection. Conversely, older vehicles or base models require a manual interface with the battery, stop lamp switch, and rear bumper connector.

Proper planning minimizes the risk of electrical shorts or thermal failure in the wiring. You must ensure all wiring used is rated for the appropriate amperage, typically requiring 10 to 14 AWG (American Wire Gauge) depending on the specific circuit's load.

Essential Tools and Materials

• Electronic Brake Controller: Proportional or timed-delay unit.
• Wiring Kit: 10-gauge duplex wire (blue and white) for the trailer feed and ground, and 12-gauge wire for power.
• Circuit Breakers: One 20-amp or 30-amp resettable circuit breaker for the controller power and one 40-amp breaker if providing 12V auxiliary power to the trailer.
• Electrical Tools: Multimeter or circuit tester, wire strippers, heavy-duty crimping tool, and a cordless drill with driver bits.
• Hardware: Ring terminals, heat-shrink butt connectors, zip ties, and loom for wire protection.
• Estimated Duration: 2 to 4 hours depending on vehicle accessibility.
• Budget Benchmark: $80 to $250 for parts and controller.

Executing the Wiring Configuration: A Sequential Workflow

The following procedure outlines a universal "hardwire" installation, which is the most complex scenario. If your vehicle features a factory tow plug, you may skip the firewall pass-through and battery connection steps by utilizing a vehicle-specific adapter harness.

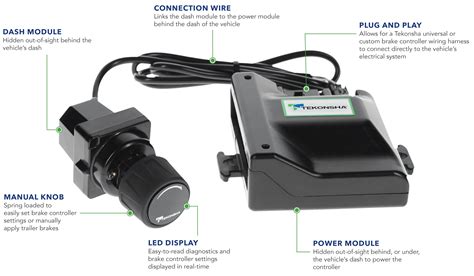

Step 1: Mounting the Brake Controller Unit

Select a mounting location on the driver’s side dashboard that is easily accessible while driving but does not interfere with knee movement or airbag deployment. Most modern controllers use an internal inertia sensor (accelerometer) and must be mounted within a specific range of levels—typically between -20 and 70 degrees—to function accurately.

1. Secure the mounting bracket to the lower dash panel using the provided self-tapping screws.
2. Attach the controller to the bracket, ensuring it is aligned with the vehicle's direction of travel.
3. Verify that the manual override lever is reachable in emergency situations without looking away from the road.

Warning: Avoid drilling into the heater core, steering column, or existing wiring harnesses located behind the dashboard. Always verify the area behind the mounting surface is clear.

Step 2: Routing Wires Through the Firewall

You must run wires from the passenger compartment to the engine bay to access the battery and the rear of the vehicle.

1. Locate an existing rubber grommet in the firewall. If no grommet is available, you must drill a hole and install a new plastic or rubber grommet to prevent the metal edge from chafing the wires.
2. Pull a length of 10-gauge blue wire (output) and 12-gauge black wire (input power) through the firewall.
3. Ensure enough slack remains under the dash to connect to the controller's pigtail.

Step 3: Establishing the Battery and Ground Connections

A brake controller requires a consistent, high-amperage power source directly from the battery. Never tap into an existing fuse box or auxiliary circuit, as this can overload the factory wiring.

1. Mount a 20-amp or 30-amp (refer to controller manual) resettable circuit breaker to a flat metal surface in the engine bay near the battery.
2. Connect the black power wire from the controller to the "AUX" post of the circuit breaker.
3. Run a new wire from the "BAT" post of the circuit breaker to the positive (+) terminal of the battery. Do not connect to the battery until the very end.
4. Connect the white ground wire from the controller directly to the negative (-) battery terminal or a verified chassis ground point using a ring terminal.

Pro-Tip: Using a resettable circuit breaker instead of a standard fuse is critical. If a momentary short occurs, the breaker will trip and reset, whereas a blown fuse would leave you without trailer brakes until you physically replace it.

Step 4: Tapping the Stop Lamp Switch (Signal Wire)

The controller needs to know when you have pressed the brake pedal. This is achieved by tapping into the "cold side" of the brake light switch located near the top of the brake pedal arm.

1. Use a multimeter to test the wires coming off the switch.
2. The "hot side" wire will have 12V power at all times.
3. The "cold side" wire will show 0V normally and 12V only when the brake pedal is depressed.
4. Connect the red wire from the brake controller to this cold side wire using a high-quality crimp connector. Avoid using "T-taps," as they often vibrate loose in automotive environments.

Step 5: Finalizing the Trailer Feed (Blue Wire)

The blue wire carries the modulated electrical signal to the trailer's electromagnetic brakes.

1. Route the 10-gauge blue wire from the engine bay along the vehicle's frame rail toward the rear bumper.
2. Use zip ties to secure the wire every 18 inches, keeping it away from heat sources like the exhaust manifold and moving parts like the suspension or drive shaft.
3. Connect this wire to the "Electric Brake" terminal (usually Center-Right or Pin 2) of your 7-way round trailer connector.

Wire Color Standards and Technical Specifications

Standardized wiring colors are established by the Society of Automotive Engineers (SAE) under J1239 and J2863. Adhering to these standards ensures that any trailer connected to the vehicle will function predictably. Note that while most controller manufacturers follow these colors, always verify with your specific unit's manual.

Resolving Electrical Interface Issues and Common Wiring Faults

Electrical troubleshooting requires a systematic approach using a multimeter to isolate the vehicle side from the trailer side. Most issues stem from poor grounding or improper signal tapping.

• Scenario: The controller display shows "NC" (No Connection) even when the trailer is plugged in.




  • Root Cause: A break in the blue output wire or a corroded ground connection on the trailer frame.
  • Actionable Fix: Test for 12V at the 7-way plug pin 2 while the manual override is engaged. If power is present at the plug, the issue is on the trailer side. Clean all ground contacts with a wire brush and apply dielectric grease.

• Scenario: Trailer brakes lock up as soon as the pedal is touched.




  • Root Cause: The gain setting is too high for the load weight, or the controller is mounted at an angle the internal sensor cannot calibrate.
  • Actionable Fix: Reduce the "Gain" or "Power" setting on the controller interface. If the issue persists, ensure the controller is mounted level and parallel to the direction of travel.

• Scenario: The controller does not power on when the vehicle starts.




  • Root Cause: Blown circuit breaker or a disconnected ground wire.
  • Actionable Fix: Check the reset button on the engine bay circuit breaker. Use a multimeter to verify 12V at the black wire entering the controller and 0 ohms of resistance between the white wire and the battery's negative post.

• Scenario: Brake lights stay on constantly after installation.




  • Root Cause: The red signal wire was incorrectly tapped into the "hot side" of the stop lamp switch instead of the "cold side."
  • Actionable Fix: Re-test the stop lamp switch wires. Move the red wire connection to the lead that only carries voltage when the pedal is physically depressed.

Frequently Asked Questions

What is the difference between a proportional and a timed-delay brake controller?

A proportional controller uses an internal accelerometer to sense how fast the vehicle is decelerating and applies a matching amount of pressure to the trailer brakes. A timed-delay controller applies a pre-set amount of braking force that increases over a short duration regardless of how hard you press the pedal. Proportional controllers provide smoother, safer stopping and are highly recommended for modern towing.

Can I wire a brake controller to a vehicle with a 4-way flat connector?

A 4-way flat connector does not have a circuit for electric brakes. To use a brake controller, you must upgrade to a 7-way round connector. This requires adding the blue brake output wire, a black 12V power wire, and usually a purple wire for reverse lights if the trailer is equipped with them.

Do I need to disconnect the battery before starting the wiring process?

Yes, it is standard safety protocol to disconnect the negative battery cable before performing any electrical work. This prevents accidental short circuits that could damage the vehicle’s Engine Control Module (ECM) or trigger airbag deployment while working near the steering column.

Why is 10-gauge wire required for the blue brake output?

Electric brakes operate using electromagnets that pull high current. Using a wire gauge that is too thin (like 16 or 18 gauge) creates electrical resistance, causing the wire to heat up and the voltage to drop. This results in weak braking performance and a potential fire hazard.

How do I adjust the "Gain" on my new controller?

To set the gain, drive at approximately 20-25 mph on a flat, paved surface and fully engage the manual override lever. If the trailer brakes lock up, decrease the gain. If the vehicle takes too long to stop, increase the gain. The goal is to reach a setting just below the point of wheel lock-up.

Elevate Your Towing Safety Standards

Properly wiring your brake controller is the most significant step you can take toward ensuring the safety of your vehicle and cargo. If you are uncomfortable with complex automotive electrical systems, consider a professional installation to guarantee compliance with all safety regulations.
